CGS SMQ Series
Manufacturer: TE Connectivity AMP Connectors
Catalog

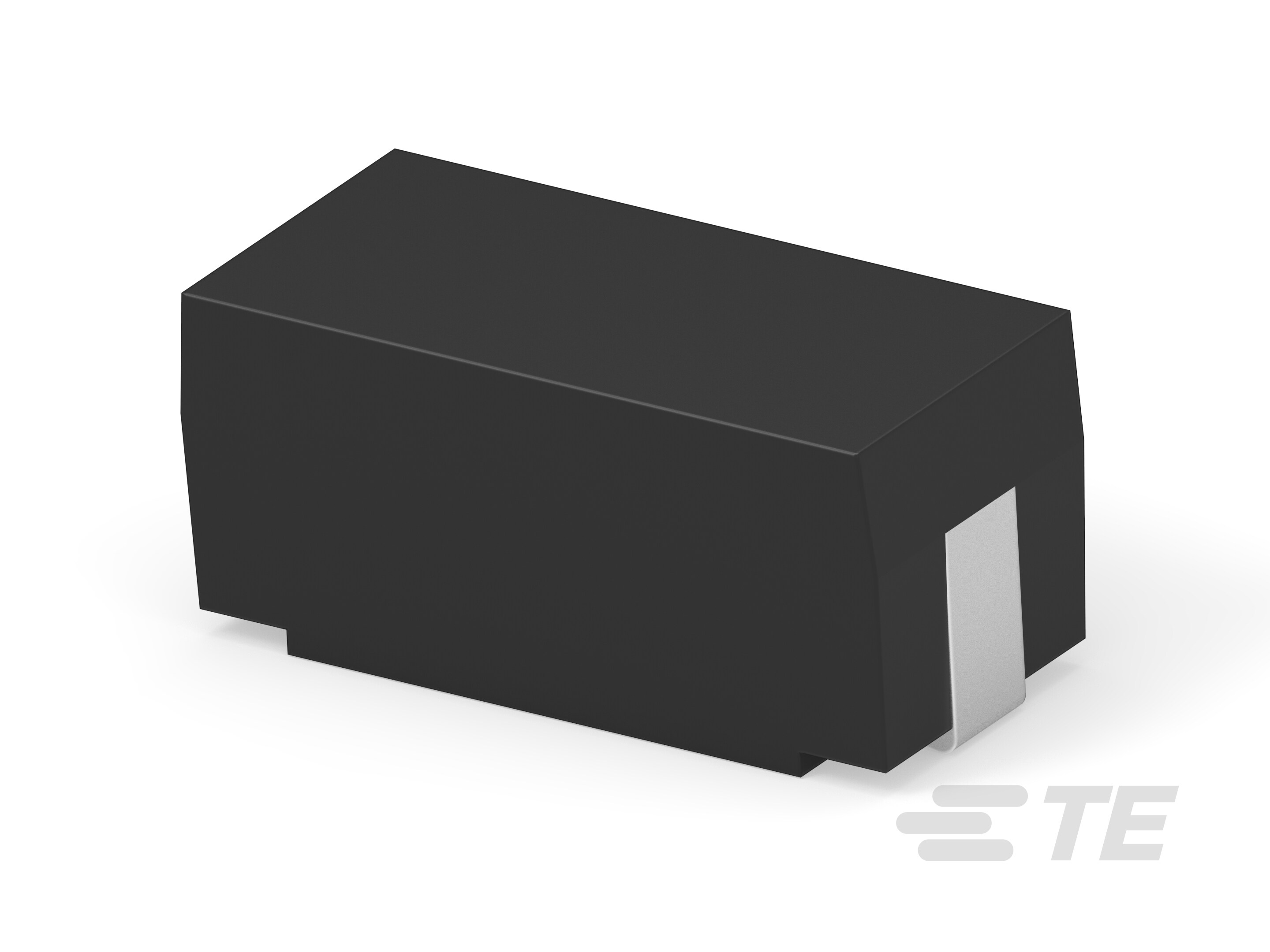

SMD CHIP RESISTOR, 24 KOHM, ± 5%, 1 W, METAL FILM, HIGH POWER
...
| Part | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Power (Watts) | Features | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Height - Seated (Max) [Max] | Height - Seated (Max) | Number of Terminations [custom] | Resistance | Tolerance | Temperature Coefficient | Composition | Ratings | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Supplier Device Package | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.157 " | 4 mm | 6.7 mm | 0.264 in | 1 W | Automotive AEC-Q200 Flame Retardant Coating Safety | -55 C | 150 °C | 2616 (6740 Metric) J-Lead | 0.152 in | 3.85 mm | 2 | 24 kOhms | 5 % | 100 ppm/°C | Metal Film | |||||
 TE Connectivity AMP Connectors | 0.217 in | 5.5 mm | 10.5 mm | 0.413 in | 2 W | Automotive AEC-Q200 Flame Retardant Coating Safety | -55 C | 150 °C | 4122 J-Lead | 2 | 2 kOhms | 5 % | 100 ppm/°C | Metal Film | AEC-Q200 | 0.209 " | 5.3 mm | 4122 | |||
TE Connectivity AMP Connectors | 0.217 in | 5.5 mm | 10.5 mm | 0.413 in | 2 W | Automotive AEC-Q200 Flame Retardant Coating Safety | -55 C | 150 °C | 4122 J-Lead | 2 | 620 mOhms | 5 % | 200 ppm/°C | Wirewound | AEC-Q200 | 0.209 " | 5.3 mm | 4122 | |||
TE Connectivity AMP Connectors | 0.217 in | 5.5 mm | 10.5 mm | 0.413 in | 2 W | Automotive AEC-Q200 Flame Retardant Coating Safety | -55 C | 150 °C | 4122 J-Lead | 2 | 75 Ohms | 5 % | 200 ppm/°C | Wirewound | AEC-Q200 | 0.209 " | 5.3 mm | 4122 | |||
 TE Connectivity AMP Connectors | 0.217 in | 5.5 mm | 10.5 mm | 0.413 in | 2 W | Automotive AEC-Q200 Flame Retardant Coating Safety | -55 C | 150 °C | 4122 J-Lead | 2 | 6.8 Ohms | 5 % | 200 ppm/°C | Wirewound | AEC-Q200 | 0.209 " | 5.3 mm | 4122 | |||
 TE Connectivity AMP Connectors | 0.157 " | 4 mm | 6.7 mm | 0.264 in | 1 W | Automotive AEC-Q200 Flame Retardant Coating Safety | -55 C | 150 °C | 2616 (6740 Metric) J-Lead | 0.152 in | 3.85 mm | 2 | 43 Ohms | 5 % | 200 ppm/°C | Wirewound | AEC-Q200 | ||||
TE Connectivity AMP Connectors | 0.287 in | 7.3 mm | 13.5 mm | 0.531 in | 3 W | Automotive AEC-Q200 Flame Retardant Coating Safety | -55 C | 150 °C | 5329 (13573 Metric) J-Lead | 7.1 mm | 2 | 3.6 kOhms | 5 % | 100 ppm/°C | Metal Film | 0.28 in | |||||
TE Connectivity AMP Connectors | 0.157 " | 4 mm | 6.7 mm | 0.264 in | 1 W | Automotive AEC-Q200 Flame Retardant Coating Safety | -55 C | 150 °C | 2616 (6740 Metric) J-Lead | 0.152 in | 3.85 mm | 2 | 62 Ohms | 5 % | 200 ppm/°C | Wirewound | AEC-Q200 | ||||
TE Connectivity AMP Connectors | 0.217 in | 5.5 mm | 10.5 mm | 0.413 in | 2 W | Automotive AEC-Q200 Flame Retardant Coating Safety | -55 C | 150 °C | 4122 J-Lead | 2 | 82 kOhms | 5 % | 100 ppm/°C | Metal Film | AEC-Q200 | 0.209 " | 5.3 mm | 4122 | |||
TE Connectivity AMP Connectors | 0.157 " | 4 mm | 6.7 mm | 0.264 in | 1 W | Automotive AEC-Q200 Flame Retardant Coating Safety | -55 C | 150 °C | 2616 (6740 Metric) J-Lead | 0.152 in | 3.85 mm | 2 | 20 kOhms | 5 % | 100 ppm/°C | Metal Film |
