2019-7511 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

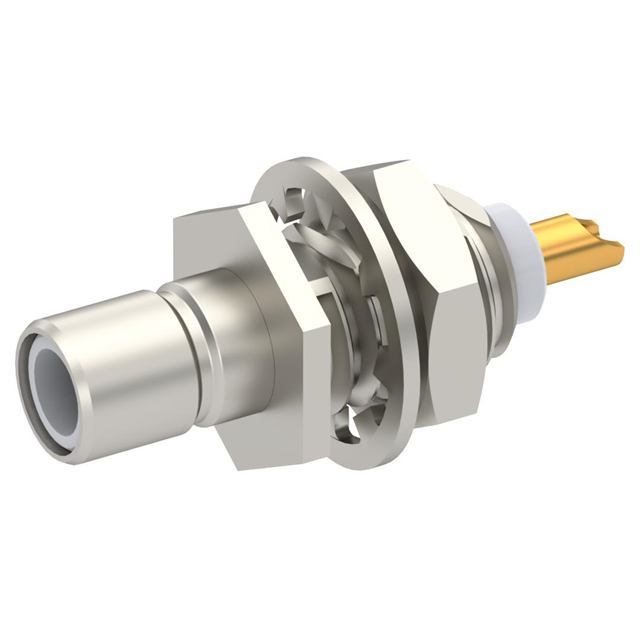

SMB M STR BHD SP
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Dielectric Material | Includes | Body Finish | Mating Cycles | Center Contact Plating | Fastening Type | Number of Ports | Center Contact Material | Housing Color | Impedance | Mounting Feature | Connector Type | Mounting Type | Connector Style | Contact Termination | Shield Termination | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -65 ░C | 165 °C | Brass | Polytetrafluoroethylene (PTFE) | 1 Connector 1 Lockwasher 1 Nut | Nickel | 500 | Gold | Snap-On | 1 | Brass | Silver | 50 Ohms | Bulkhead - Rear Side Nut | Jack Male Pin | Panel Mount | SMB | Solder Cup | Solder | 4 GHz |
