1437581 Series

Catalog

SWITCH SLIDE DPDT 0.3A 115V

Part	Switch Travel	Actuator Length [x]	Voltage Rating - AC	Mechanical Life	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Operating Force	Electrical Life	Contact Material	Circuit	Switch Function	Contact Finish	Contact Timing	Actuator Material	Termination Style	Mounting Type	Current Rating (Amps)
TE Connectivity Raychem Cable Protection 1-1437581-1	2.79 mm	2.67 mm	115 V	15000 Cycles	Standard	-40 °C	80 C	950 gf	15000 Cycles	Copper Alloy	DPDT	On-On	Silver	Shorting	Nylon 4/6 Polyamide (PA46)	Gull Wing	Surface Mount Right Angle	300 mA
TE Connectivity Raychem Cable Protection 4-1437581-7	2.54 mm	5.84 mm	115 V	15000 Cycles	Standard	-40 °C	80 C	800 gf	15000 Cycles		4P3T	On-On-On		Shorting		PC Pin	Through Hole Right Angle	300 mA

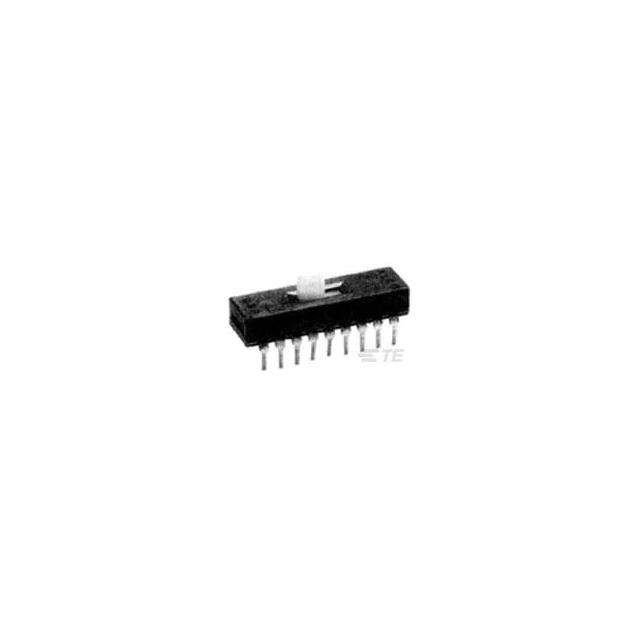

TE Connectivity Raychem Cable Protection 1-1437581-4	2.79 mm	2.79 mm	115 V	15000 Cycles	Standard	-40 °C	80 C	950 gf	15000 Cycles	Copper Alloy	4PDT	On-On	Silver	Shorting	Nylon 4/6 Polyamide (PA46)	PC Pin	Through Hole	300 mA
