9L28064 Series
Manufacturer: Belden Inc.
Beta
⌘K

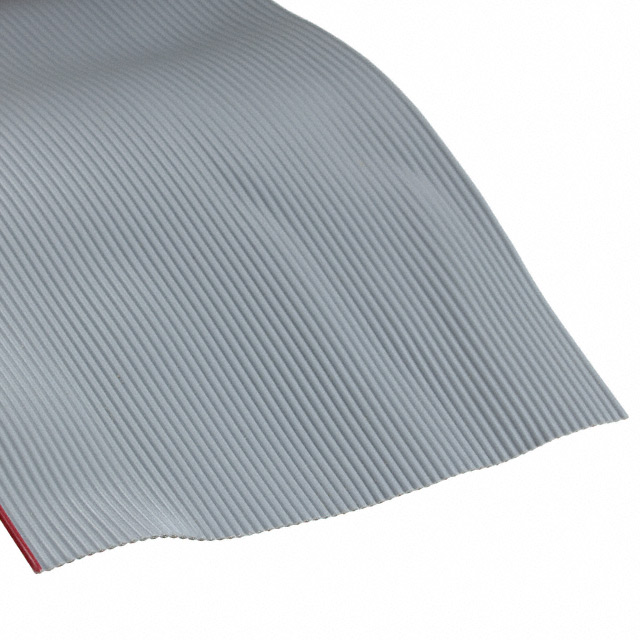

CBL RIBN 64COND 0.05 GRAY 100'
| Part | Insulation Resistance | First Conductor Mark | Current Rating (Amps) | Conductor Material | Ribbon Thickness | Ribbon Thickness | Shielding | Cable Type | Voltage | Ratings | Operating Temperature [Min] | Operating Temperature [Max] | Length | Length | Ribbon Width [custom] | Ribbon Width [custom] | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Pitch | Pitch | Wire Gauge | Number of Conductors [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 10 GOhm | Red | 1 A | Copper Tinned | 0.89 mm | 0.035 in | Unshielded | Flat Cable | 300 VDC | UL Style 2651 | -40 C | 105 ░C | 100 ' | 30.48 m | 81.28 mm | 3.2 in | Gray | 36 AWG | 7 Strands | Poly-Vinyl Chloride (PVC) | 0.05 in | 1.27 mm | 28 AWG | 64 |
