002231 Series
Manufacturer: Molex
Beta
⌘K

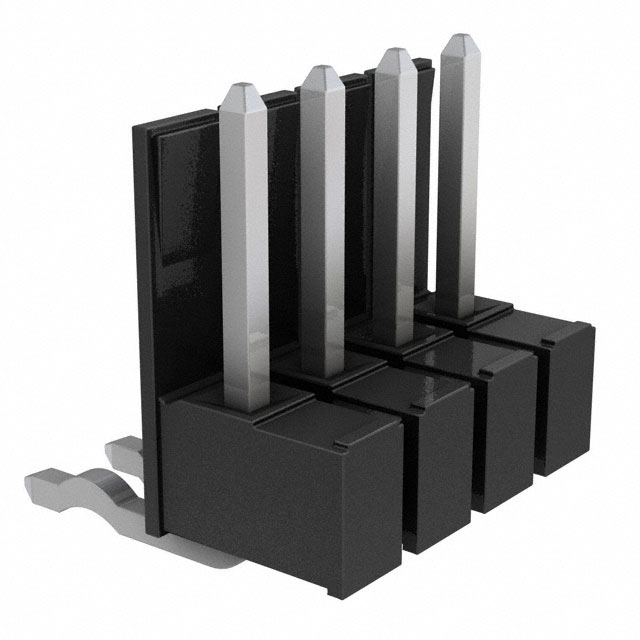

CONN HEADER R/A 4POS 2.54MM
| Part | Applications | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Length - Post [custom] | Contact Length - Post [custom] | Number of Rows | Fastening Type | Insulation Height | Insulation Height | Termination | Material Flammability Rating | Contact Type | Shrouding | Style | Insulation Color | Contact Shape | Connector Type | Contact Length - Mating | Contact Length - Mating | Contact Finish - Post | Mounting Type | Pitch - Mating | Pitch - Mating | Insulation Material | Number of Positions | Number of Positions Loaded | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Automotive General Purpose Medical Telecommunications | 2.54 µm | 100 µin | 0.135 in | 3.43 mm | 1 | Push-Pull | 7.21 mm | 0.284 in | Kinked Pin Solder | UL94 V-0 | Male Pin | Shrouded - 1 Wall | Board to Board Cable | Black | Square | Header Breakaway | 7.49 mm | 0.295 in | Tin | Right Angle Through Hole | 0.1 " | 2.54 mm | Glass Filled Nylon Polyamide (PA) | 4 | All | 100 çin | 2.54 çm |
