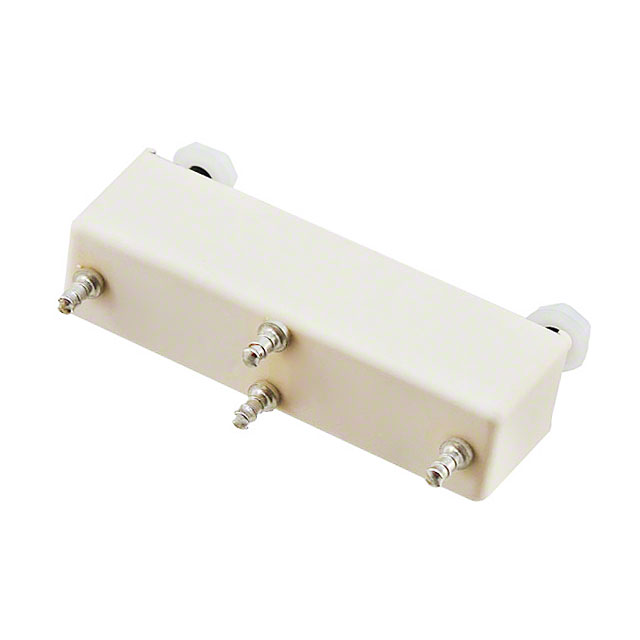

DAT71210 Series
Manufacturer: Sensata-Crydom
Beta
⌘K
RELAY REED SPST-NO 2A 12V
| Part | Coil Resistance | Contact Material | Termination Style | Operate Time | Coil Voltage | Coil Type | Must Release Voltage | Must Operate Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Coil Current | Switching Voltage | Release Time | Contact Rating (Current) | Contact Form | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sensata-Crydom | 150 Ohms | Tungsten (W) | Solder Turret | 3 ms | 12 VDC | Non Latching | 1.25 VDC | 9 VDC | -20 ░C | 70 °C | 80 mA | 7000 VAC 7000 VDC | 2 ms | 2 A | SPST-NO (1 Form A) | Chassis Mount |
