A2I09 Series

Catalog

AIRFAST RF LDMOS WIDEBAND INTEGRATED POWER AMPLIFIER, 575-960 MHZ, 2 W AVG., 48 V/ REEL ROHS COMPLIANT: YES

Part	Frequency (Min)	Frequency (Max)	Package / Case	Mounting Type	RF Type	Gain	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Current - Supply	Test Frequency	Package Name	P1dB	Voltage - Supply

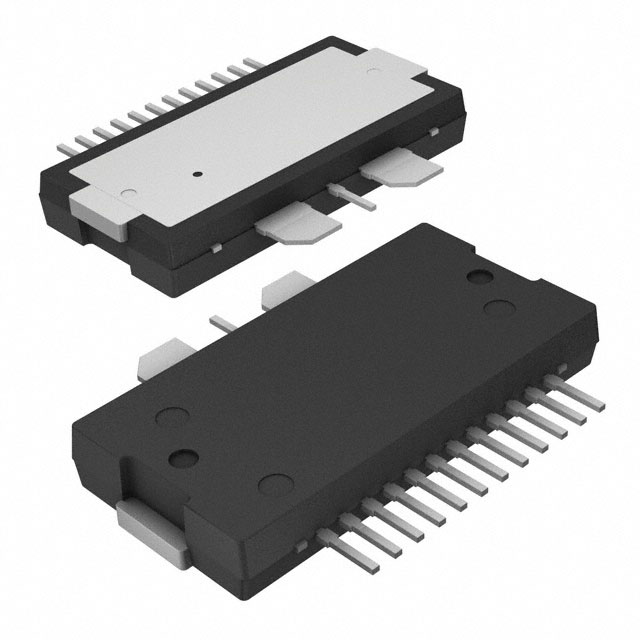

NXP USA Inc. A2I09VD015NR1	575 MHz	960 MHz	Flat Leads TO-270-15 Variant	Surface Mount	General Purpose	34 dB	55 V	48 V	84 mA	920 MHz	TO-270WB-15
NXP USA Inc. A2I09VD030NR1			Flat Leads TO-270-15 Variant	Surface Mount		34.3 dB					TO-270WB-15	33.3 dB	48 VAC
NXP USA Inc. A2I09VD015GNR1	575 MHz	960 MHz	Gull Wing TO-270-15 Variant	Surface Mount	General Purpose	34 dB	55 V	48 V	84 mA	920 MHz	TO-270WBG-15
NXP USA Inc. A2I09VD050GNR1	575 MHz	960 MHz	Gull Wing TO-270-15 Variant	Surface Mount	General Purpose	38 dB	55 V	48 V	240 mA	920 MHz	TO-270WBG-15
