SRP6530A Series
Manufacturer: Bourns Inc.
Beta
⌘K

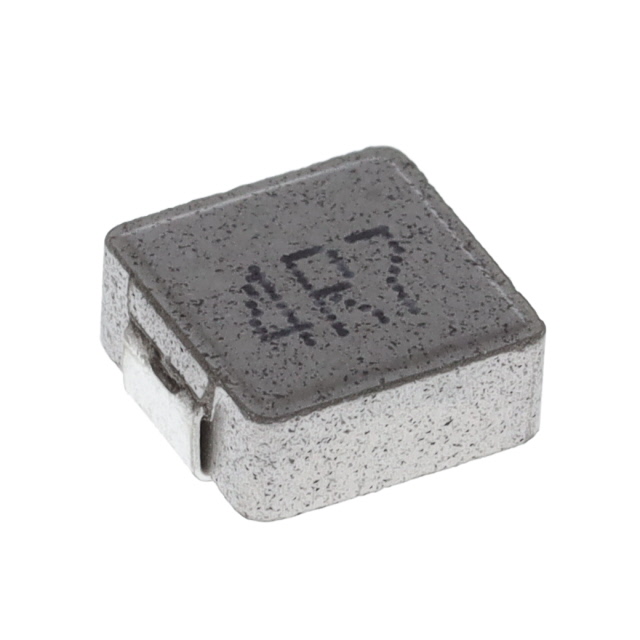

POWER INDUCTORS - SMD IND,7.1X6.6X3MM,4.7UH+/-20%,6A,SHD
| Part | Frequency - Self Resonant | DC Resistance (DCR) | Ratings | Shielding | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Inductance Frequency - Test | Current - Saturation (Isat) | Current Rating (Amps) | Material - Core | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Package / Case | Inductance | Q @ Freq | Tolerance | DC Resistance (DCR) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 22 MHz | 40 mOhm | AEC-Q200 | Shielded | Surface Mount | 155 C | -55 C | 500 kHz | 11 A | 6 A | Metal Composite | 0.118 " | 3 mm | Nonstandard | 4.7 ÁH | 7.96 MHz 21 | 20 % | |
 Bourns Inc. | 12 MHz | AEC-Q200 | Shielded | Surface Mount | 155 C | -55 C | 500 kHz | 7.5 A | 5 A | Metal Composite | 0.118 " | 3 mm | Nonstandard | 8.2 µH | 2.52 MHz 26 | 20 % | 68 mOhm |
