200 Series
Manufacturer: 3M Electronic Specialty
Beta
⌘K

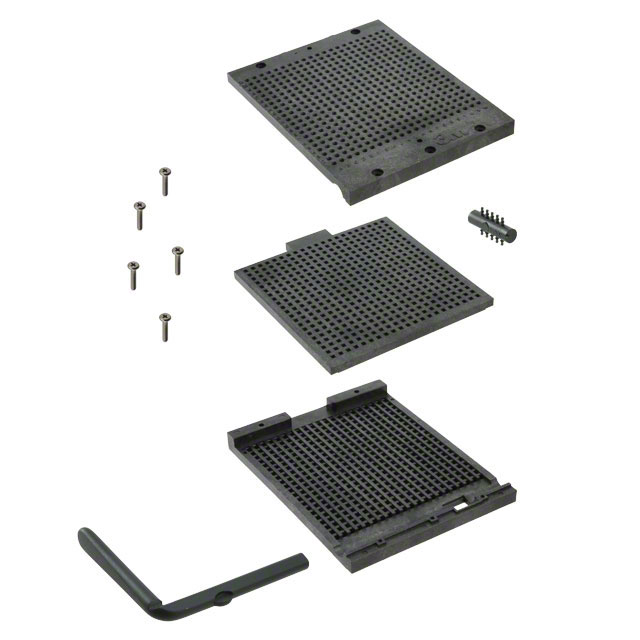

CONN SOCKET PGA ZIF 441POS GOLD
| Part | Termination Post Length | Termination Post Length | Current Rating (Amps) | Material Flammability Rating | Type | Housing Material | Contact Material - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions or Pins (Grid) | Pitch - Post | Pitch - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Termination | Contact Material - Post | Mounting Type | Contact Finish - Mating | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Number of Positions or Pins (Grid) [x] | Number of Positions or Pins (Grid) [y] | For Use With/Related Products | Accessory Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 3M Electronic Specialty | 3.3 mm | 0.13 in | 1 A | UL94 V-0 | PGA ZIF (ZIP) | Polyethersulfone (PES) | Beryllium Copper | -55 C | 150 °C | 441 | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | 30 µin | 0.76 µm | Solder | Beryllium Copper | Through Hole | Gold | Gold | 0.1 " | 2.54 mm | ||||
 3M Electronic Specialty | 3.3 mm | 0.13 in | 1 A | UL94 V-0 | PGA ZIF (ZIP) | Polyethersulfone (PES) | Beryllium Copper | -55 C | 150 °C | 361 | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | 30 µin | 0.76 µm | Solder | Beryllium Copper | Through Hole | Gold | Gold | 0.1 " | 2.54 mm | 19 | 19 | ||
 3M Electronic Specialty | 3.3 mm | 0.13 in | 1 A | UL94 V-0 | PGA ZIF (ZIP) | Polyethersulfone (PES) | Beryllium Copper | -55 C | 150 °C | 169 | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | 30 µin | 0.76 µm | Solder | Beryllium Copper | Through Hole | Gold | Gold | 0.1 " | 2.54 mm | 13 | 13 | ||
 3M Electronic Specialty | 3.3 mm | 0.13 in | 1 A | UL94 V-0 | PGA ZIF (ZIP) | Polyethersulfone (PES) | Beryllium Copper | -55 C | 150 °C | 625 | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | 30 µin | 0.76 µm | Solder | Beryllium Copper | Through Hole | Gold | Gold | 0.1 " | 2.54 mm | 25 | 25 | ||
 3M Electronic Specialty | UL94 V-0 | -55 C | 150 °C | 3M™ PGA Sockets | Plug | ||||||||||||||||||||||
 3M Electronic Specialty | 3.3 mm | 0.13 in | 1 A | UL94 V-0 | PGA ZIF (ZIP) | Polyethersulfone (PES) | Beryllium Copper | -55 C | 150 °C | 289 | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | 30 µin | 0.76 µm | Solder | Beryllium Copper | Through Hole | Gold | Gold | 0.1 " | 2.54 mm | 17 | 17 | ||
 3M Electronic Specialty | 3.3 mm | 0.13 in | 1 A | UL94 V-0 | PGA ZIF (ZIP) | Polyethersulfone (PES) | Beryllium Copper | -55 C | 150 °C | 121 | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | 30 µin | 0.76 µm | Solder | Beryllium Copper | Through Hole | Gold | Gold | 0.1 " | 2.54 mm |
