F10 Series

Catalog

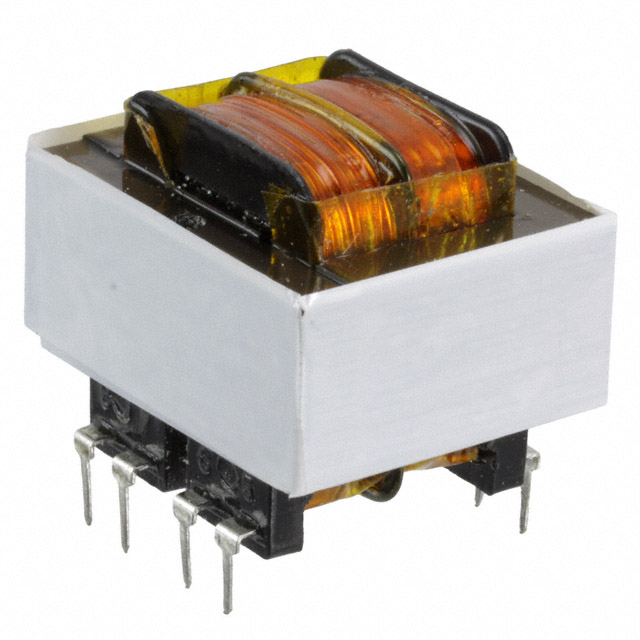

POWER TRANSFORMERS POWER XFMR 10 VCT A. 250 MA UL/CUL - CLASS 2, 115V SPLIT PACK PCB MOUNT / F10-250-C2

Part	Weight [custom]	Weight [custom]	Primary Winding(s)	Voltage - Isolation	Termination Style	Center Tap	Current - Output (Max) [custom]	Current - Output (Max) [custom]	Type	Voltage - Secondary (Full Load)	Voltage - Primary	Secondary Winding(s)	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Power - Max [Max]	Weight	Weight	Height - Seated (Max) [Max]
Triad Magnetics F10-250-C2	113.4 g	0.25 lbs	Single	2500 Vrms	PC Pin		500 mA	250 mA	Laminated Core	5 V 10 V	115 V	Dual	30.15 mm	34.93 mm	28.58 mm	Through Hole	2.5 VA
Triad Magnetics F10-3600-C2			Single	2500 Vrms	PC Pin		7.2 A	3.6 A	Laminated Core	5 V 10 V	115 V	Dual		66.68 mm	55.55 mm	Through Hole	36 VA	1.1 lbs	499 g	39.67 mm
