EN2P5M Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

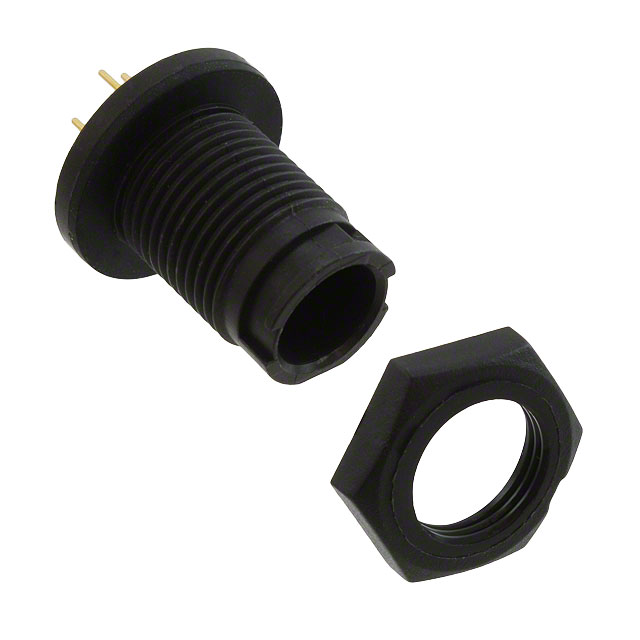

CIRCULAR CONNECTOR, EN2 SERIES, 5 CONTACTS, THERMOPLASTIC BODY
| Part | Insert Material | Contact Material | Applications | Termination | Number of Positions | Fastening Type | Contact Finish - Mating | Voltage Rating | Color | Material Flammability Rating | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Orientation | Mounting Type | Primary Material | Connector Type | Ingress Protection | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | Elastomer | Copper Alloy | Communication Systems Industrial Marine Medical | Solder | 5 | Bayonet Lock | Gold | 125 VAC | Black | UL94 V-0 | Unshielded | 85 °C | -40 C | Keyed | Panel Mount Through Hole | Plastic | Receptacle Male Pins | IP66 IP67 IP68 | Bulkhead - Front Side Nut |
 SWITCHCRAFT/CONXALL | Elastomer | Copper Alloy | Communication Systems Industrial Marine Medical | Solder | 5 | Bayonet Lock | Gold | 125 VAC | Black | UL94 V-0 | Unshielded | 85 °C | -40 C | Keyed | Panel Mount Through Hole | Plastic | Receptacle Male Pins | IP66 IP67 IP68 | Bulkhead - Front Side Nut |
