2005253 Series

Catalog

PDL 6P CAP 3.96 D/R F/H(GWT) B

Part	Note	Contact Type	Number of Rows [custom]	Row Spacing	Row Spacing	Color	Number of Positions	Fastening Type	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Pitch	Pitch	Contact Termination	Insulation Material

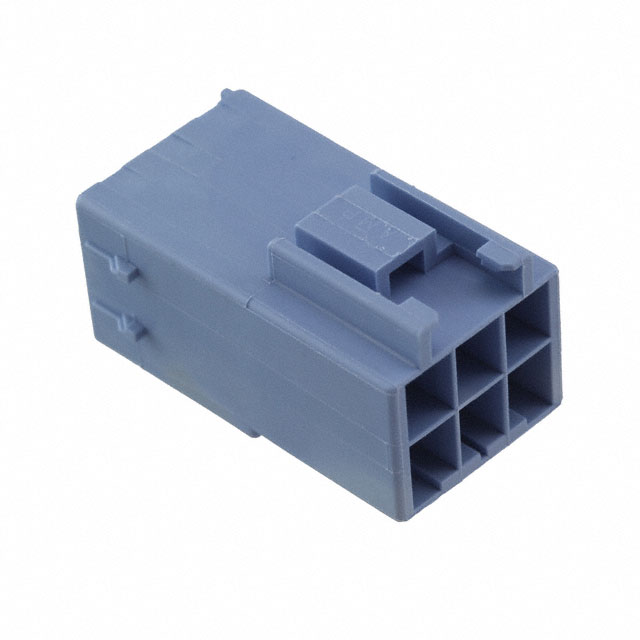

TE Connectivity AMP Connectors 2005253-6	Contacts Not Included	Tab	2	4.6 mm	0.181 in	Blue	6	Latch Lock	Receptacle	-30 ░C	65 °C	Free Hanging (In-Line)	3.96 mm	0.156 in	Crimp	Nylon 6/6 Polyamide (PA66)
TE Connectivity AMP Connectors 2005253-4	Contacts Not Included	Tab	2	4.6 mm	0.181 in	Yellow	6	Latch Lock	Receptacle	-30 ░C	65 °C	Free Hanging (In-Line)	3.96 mm	0.156 in	Crimp	Nylon 6/6 Polyamide (PA66)
TE Connectivity AMP Connectors 2005253-1	Contacts Not Included	Tab	2	4.6 mm	0.181 in	Natural	6	Latch Lock	Receptacle	-30 ░C	105 ░C	Free Hanging (In-Line)	3.96 mm	0.156 in	Crimp	Nylon 6/6 Polyamide (PA66)
