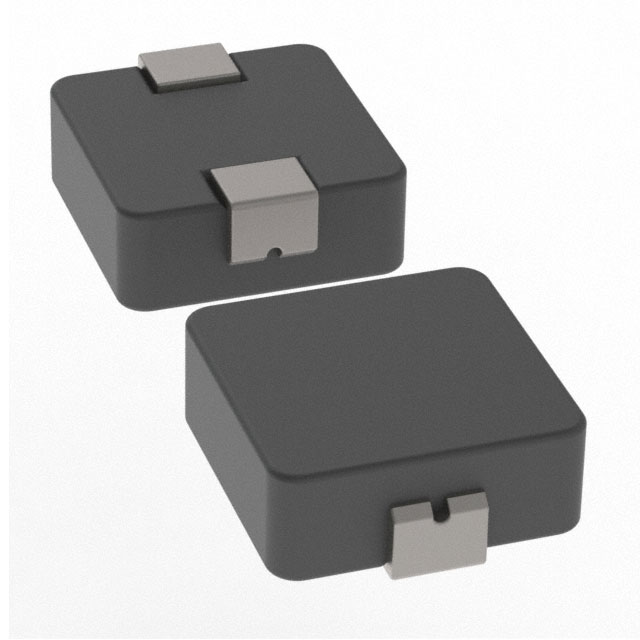

PM4342 Series
Manufacturer: Pulse Electronics
Beta
⌘K
POWER INDUCTORS - SMD 68UH 2A 4MM AEC-Q200
| Part | Height - Seated (Max) | Height - Seated (Max) [Max] | Current Rating (Amps) | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Tolerance | Inductance Frequency - Test | Inductance | DC Resistance (DCR) [Max] | Type | Current - Saturation (Isat) | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Shielding | Ratings | Mounting Type | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | 4 mm | 0.157 in | 2 A | 11.5 mm | 0.453 " | 0.406 in | 10.3 mm | 20 % | 100 kHz | 68 µH | 240 mOhm | Molded | 3 A | -55 C | 125 °C | Nonstandard | Shielded | AEC-Q200 | Surface Mount | |
 Pulse Electronics | 4 mm | 0.157 in | 12 Amps | 11.5 mm | 0.453 " | 0.406 in | 10.3 mm | 20 % | 100 kHz | 2.2 µH | 7 mOhm | Molded | 27 A | -55 C | 125 °C | Nonstandard | Shielded | AEC-Q200 | Surface Mount | |
Pulse Electronics | 4 mm | 0.157 in | 5 A | 11.5 mm | 0.453 " | 0.406 in | 10.3 mm | 20 % | 100 kHz | 22 µH | Molded | 7 A | -55 C | 125 °C | Nonstandard | Shielded | AEC-Q200 | Surface Mount | 74 mOhm | |
Pulse Electronics | 4 mm | 0.157 in | 11 A | 11.5 mm | 0.453 " | 0.406 in | 10.3 mm | 20 % | 100 kHz | 3.3 µH | 11.8 mOhm | Molded | 20 A | -55 C | 125 °C | Nonstandard | Shielded | AEC-Q200 | Surface Mount | |
Pulse Electronics | 4 mm | 0.157 in | 6.25 A | 11.5 mm | 0.453 " | 0.406 in | 10.3 mm | 20 % | 100 kHz | 15 µH | 45 mOhm | Molded | 10 A | -55 C | 125 °C | Nonstandard | Shielded | AEC-Q200 | Surface Mount | |
Pulse Electronics | 4 mm | 0.157 in | 31 A | 11.5 mm | 0.453 " | 0.406 in | 10.3 mm | 20 % | 100 kHz | 330 nH | Molded | 60 A | -55 C | 125 °C | Nonstandard | Shielded | AEC-Q200 | Surface Mount | 1.2 mOhm |
