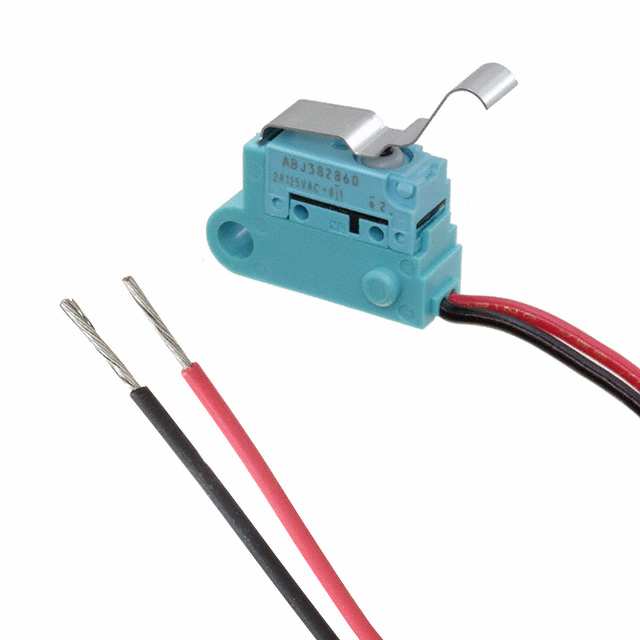

ABJ382 Series

Catalog

SWITCH SNAP ACT SPST-NC 2A 125V

Part	Electrical Life	Voltage Rating - DC	Release Force	Current Rating (Amps)	Mounting Type	Ingress Protection	Operating Position [x]	Operating Position [x]	Operating Force	Differential Travel	Differential Travel	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Voltage Rating - AC	Actuator Type	Overtravel [custom]	Overtravel [custom]	Mechanical Life	Termination Style	Circuit
Panasonic Electronic Components ABJ382860	30000 Cycles	30 V	27 gf	2 A	Chassis Mount	IP67 - Dust Tight Waterproof	16.3 mm	0.64 in	179 gf	0.5 mm	0.02 in	85 °C	-40 C	On-Mom	125 V	Leaf Lever	1.4 mm	0.055 "	500000 Cycles	Wire Leads	SPST-NC

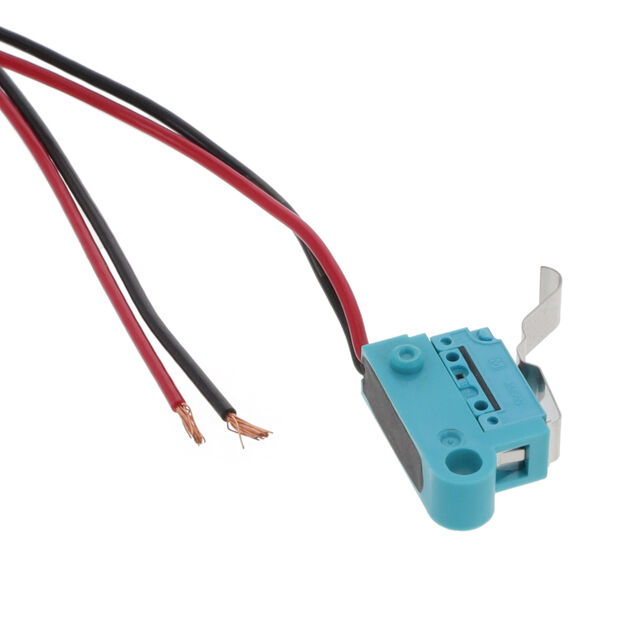

Panasonic Electronic Components ABJ382861	100000 Cycles	30 V	27 gf	100 mA	Chassis Mount	IP67 - Dust Tight Waterproof	16.3 mm	0.64 in	179 gf	0.5 mm	0.02 in	85 °C	-40 C	On-Mom	125 V	Leaf Lever	1.4 mm	0.055 "	500000 Cycles	Wire Leads	SPST-NC
