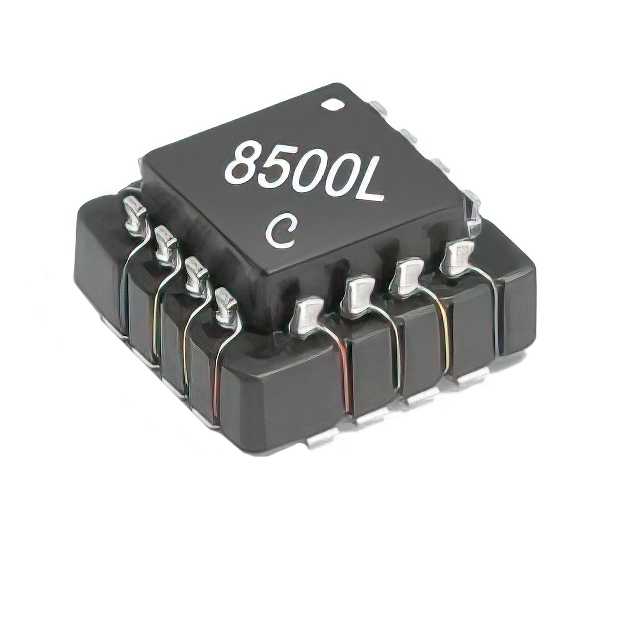

CDF Series
Manufacturer: Coilcraft
Beta
⌘K
COMMON MODE CHOKES / FILTERS FOR DATA LINE 5UH 100MA DCR= 250MOHMS
| Part | Package / Case | Current Rating (Max) [Max] | Impedance @ Frequency | Height (Max) [z] | Height (Max) [z] | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Number of Lines | Mounting Type | Filter Type | Inductance @ Frequency | DC Resistance (DCR) (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Coilcraft | 16-BQFN | 100 mA | 630 Ohms | 4.5 mm | 0.177 in | 85 °C | -40 C | 8 mm | 0.315 in | 8 mm | 0.315 in | 8 | Surface Mount | Signal Line | 1 MHz 5 µH | 250 mOhm |
