CRGB1314 Series

Catalog

LED RGB DIFFUSED SMD

Part	Mounting Type	Lens Transparency	Lens Color	Package / Case	Height (Max) [z]	Size / Dimension [x]	Size / Dimension [y]	Lens Size [diameter]	Voltage - Forward (Vf) (Typ)	Configuration	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Wavelength - Dominant	Lens Style	Color

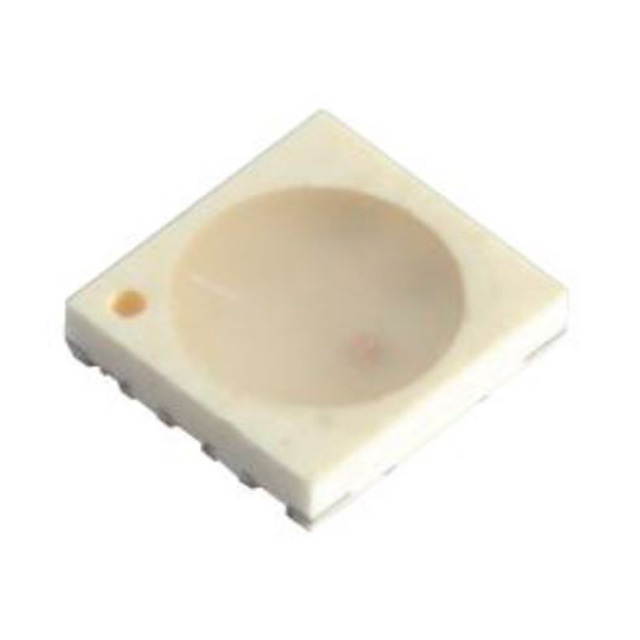

Stanley Electric Co CRGB1314ASE-TR	Surface Mount	Diffused	White	6-SMD No Lead	0.7 mm	3 mm	2.8 mm	2.4 mm Dia	2.1 V 3.1 V 3.2 V	Independent	2080 mcd	820 mcd	300 mcd	23 mA	14 mA	22 mA	469nm Blue 532nm Green 622nm Red	Round with Flat Top	Blue Green Red
Stanley Electric Co CRGB1314ASE-500-TR	Surface Mount		White	6-SMD No Lead	0.7 mm	3 mm	2.8 mm	2.4 mm Dia	2.1 V 3.1 V 3.2 V	Independent	2080 mcd	820 mcd	300 mcd	23 mA	14 mA	22 mA	469nm Blue 532nm Green 622nm Red	Round with Flat Top	Blue Green Red
