R14371 Series

Catalog

TNC / SQUARE FLANGE FEMALE-FEMAL

Part	Body Finish	Body Material	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Insertion Loss	Mating Cycles	Center Gender	Convert To (Adapter End)	Center Contact Plating	Style	Conversion Type	Adapter Type	Impedance	Mounting Type	Convert From (Adapter End)	Frequency - Max [Max]	Mounting Feature	Adapter Series
Radiall USA, Inc. R143713000	Nickel	Brass	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Beryllium Copper	0.18 dB	500	Female to Female	Female Socket TNC Jack	Gold	Straight	Same Series	Jack to Jack	50 Ohms	Panel Mount	Female Socket TNC Jack	11 GHz	Flange	TNC to TNC
Radiall USA, Inc. R143710700		Stainless Steel	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Beryllium Copper	0.18 dB	500	Female to Female	Female Socket TNC Jack	Gold	Straight	Same Series	Jack to Jack	50 Ohms	Panel Mount	Female Socket TNC Jack	18 GHz	Flange	TNC to TNC
Radiall USA, Inc. R143713200	Nickel	Brass	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Beryllium Copper	0.18 dB	500		TNC Plug Male Pin	Gold	Straight	Same Series	Plug to Jack	50 Ohms	Free Hanging (In-Line)	Female Socket TNC Jack	4 GHz		TNC to TNC

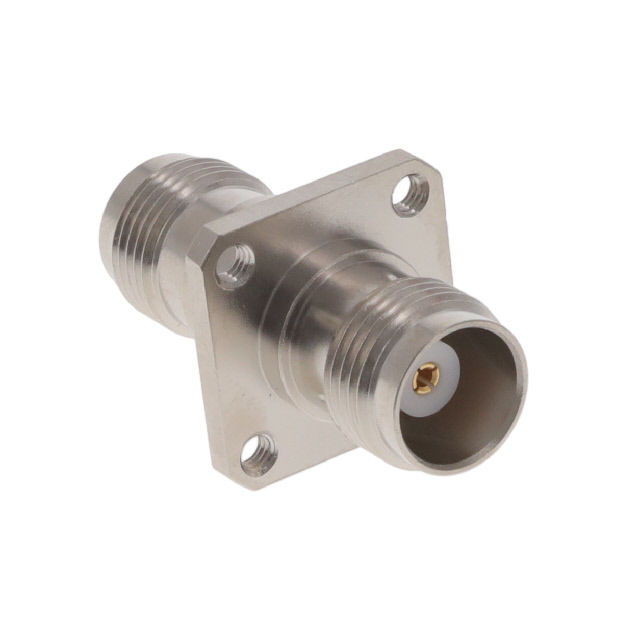

Radiall USA, Inc. R143710000	Nickel	Brass	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Beryllium Copper		500	Female to Female	Female Socket TNC Jack	Gold	Straight	Same Series	Jack to Jack	50 Ohms	Panel Mount	Female Socket TNC Jack	11 GHz	Flange	TNC to TNC
