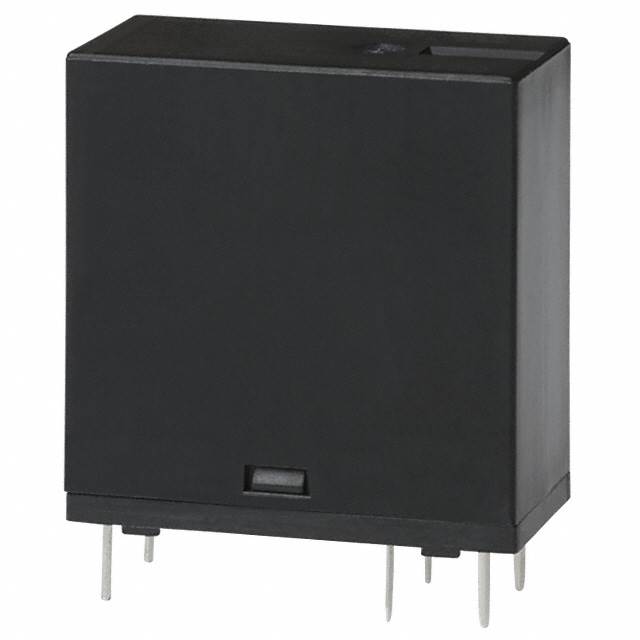

ALA2F Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
RELAY GEN PURPOSE DPST 3A 12V
| Part | Coil Resistance | Load - Max Switching | Contact Material | Approval Agency | Switching Voltage [Max] | Contact Rating (Current) | Relay Type | Mounting Type | Coil Voltage | Coil Current | Operate Time | Must Operate Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Contact Form | Must Release Voltage | Seal Rating | Release Time | Termination Style | Coil Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 272 Ohms | 375 VA | Silver Nickel (AgNi) | CSA TUV UR VDE | 125 VAC | 3 A | General Purpose | Through Hole | 12 VDC | 44.2 mA | 15 ms | 9 VDC | 70 °C | -40 C | DPST-NO (2 Form A) | 0.6 VDC | Sealed - Flux Protection | 15 ms | PC Pin | Non Latching |
Panasonic Electronic Components | 1.09 kOhms | 375 VA | Silver Nickel (AgNi) | CSA TUV UR VDE | 125 VAC | 3 A | General Purpose | Through Hole | 24 VDC | 22.1 mA | 15 ms | 18 VDC | 70 °C | -40 C | DPST-NO (2 Form A) | 1.2 VDC | Sealed - Flux Protection | 15 ms | PC Pin | Non Latching |
Panasonic Electronic Components | 612 Ohms | 375 VA | Silver Nickel (AgNi) | CSA TUV UR VDE | 125 VAC | 3 A | General Purpose | Through Hole | 18 VDC | 29.4 mA | 15 ms | 13.5 VDC | 70 °C | -40 C | DPST-NO (2 Form A) | 0.9 VDC | Sealed - Flux Protection | 15 ms | PC Pin | Non Latching |
