A3M Series

Catalog

A SERIES 3 PIN XLR MALE CABLE MOUNT, SILVER PINS, SMALL FLEX RELIEF, NICKEL

Part	Applications	Insert Material	Contact Material	Backshell Material, Plating	Features	Mounting Type	Shell Size - Insert	Primary Material	Voltage Rating	Cable Opening [Min]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Max]	Orientation	Shell Finish	Connector Type	Color	Contact Finish - Mating	Fastening Type	Shell Material	Current Rating (Amps)	Cable Opening [Max]

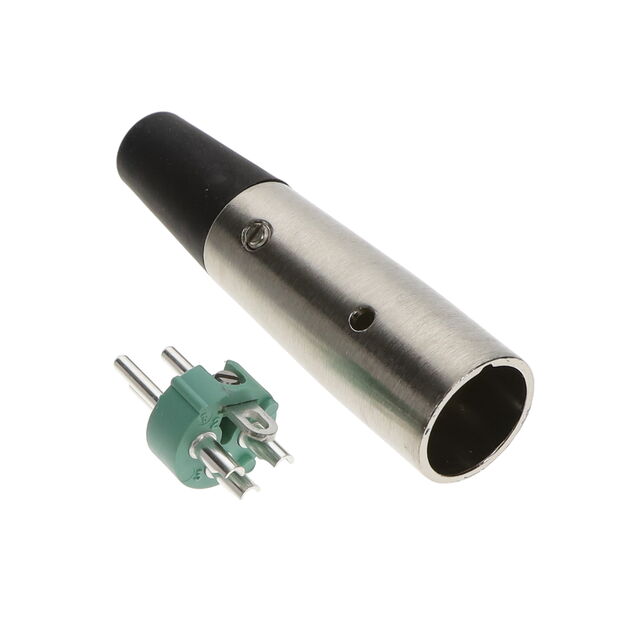

SWITCHCRAFT/CONXALL A3MS	Audio Instrumentation	Polyester	Brass	Nickel Zinc	Backshell Cable Clamp Ground Strain Relief	Free Hanging (In-Line)	XLR	Metal	125 VAC	0.105 in	2.67 mm	0.205 in	5.21 mm	Keyed	Nickel	Receptacle Male Pins	Silver	Silver	Latch Lock	Zinc	15 A

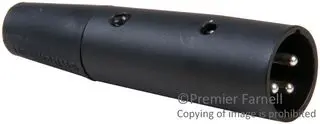

SWITCHCRAFT/CONXALL A3MB	Audio Instrumentation	Polyester	Brass	Black Finish Zinc	Backshell Cable Clamp Ground Strain Relief	Free Hanging (In-Line)	XLR	Metal	125 VAC	0.21 in	5.33 mm	0.3 "		Keyed	Black	Receptacle Male Pins	Black	Silver	Latch Lock	Zinc	15 A	7.62 mm
SWITCHCRAFT/CONXALL A3ML	Audio Instrumentation	Polyester	Brass	Nickel Zinc	Backshell Cable Clamp Ground Strain Relief	Free Hanging (In-Line)	XLR	Metal	125 VAC	0.3 in	7.62 mm	0.328 in	8.33 mm	Keyed	Nickel	Receptacle Male Pins	Silver	Silver	Latch Lock	Zinc	15 A
SWITCHCRAFT/CONXALL A3MBAU	Audio Instrumentation	Polyester	Brass	Black Finish Zinc	Backshell Cable Clamp Ground Strain Relief	Free Hanging (In-Line)	XLR	Metal	125 VAC	0.21 in	5.33 mm	0.3 "		Keyed	Black	Receptacle Male Pins	Black	Gold	Latch Lock	Zinc	15 A	7.62 mm
