TCM Series

Catalog

TANTALUM CAPACITORS - POLYMER TPM

Part	Tolerance	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Manufacturer Size Code	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Lifetime @ Temp.	Package / Case	Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Features	Mounting Type	Capacitance	ESR (Equivalent Series Resistance)

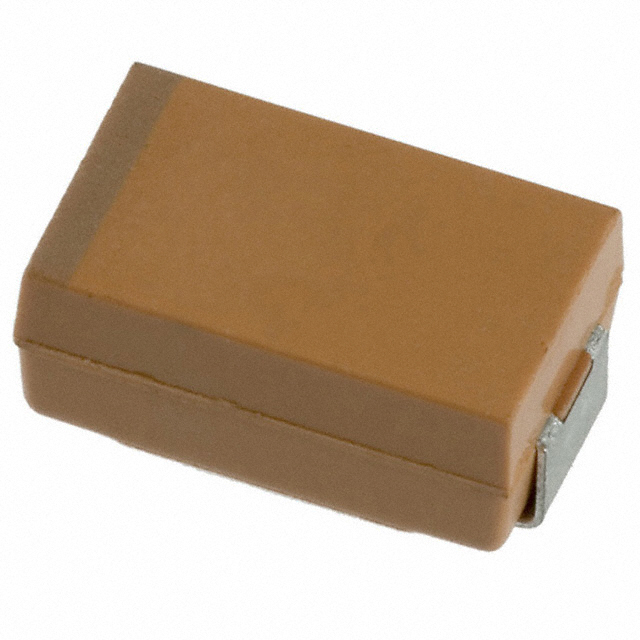

KYOCERA AVX TCME477M006R0010E	20 %	6.3 VDC	-55 C	105 ░C	E	0.169 "	7.3 mm	0.287 "	4.3 mm	2000 Hrs	2917 (7343 Metric)	Molded	0.169 in	4.3 mm	General Purpose	Surface Mount	470 µF	10 mOhm
KYOCERA AVX TCME108M004R0006	20 %	4 V	-55 C	105 ░C	E	0.169 "	7.3 mm	0.287 "	4.3 mm	2000 Hrs	2917 (7343 Metric)	Molded	0.169 in	4.3 mm	General Purpose	Surface Mount	1000 µF	6 mOhm
KYOCERA AVX TCME477M006R0012E	20 %	6.3 VDC	-55 C	125 °C	E	0.169 "	7.3 mm	0.287 "	4.3 mm	2000 Hrs	2917 (7343 Metric)	Molded	0.169 in	4.3 mm	General Purpose	Surface Mount	470 µF	12 mOhm
KYOCERA AVX TCME337M010R0010	20 %	10 V	-55 C	105 ░C	E	0.169 "	7.3 mm	0.287 "	4.3 mm	2000 Hrs	2917 (7343 Metric)	Molded	0.169 in	4.3 mm	General Purpose	Surface Mount	330 µF	10 mOhm
KYOCERA AVX TCME107M016R0025E	20 %	16 V	-55 C	125 °C	E	0.169 "	7.3 mm	0.287 "	4.3 mm	2000 Hrs	2917 (7343 Metric)	Molded	0.169 in	4.3 mm	General Purpose	Surface Mount	100 µF	25 mOhm
KYOCERA AVX TCME687M004R0010E	20 %	4 V	-55 C	125 °C	E	0.169 "	7.3 mm	0.287 "	4.3 mm	2000 Hrs	2917 (7343 Metric)	Molded	0.169 in	4.3 mm	General Purpose	Surface Mount	680 µF	10 mOhm
KYOCERA AVX TCME477M004R0010E	20 %	4 V	-55 C	125 °C	E	0.169 "	7.3 mm	0.287 "	4.3 mm	2000 Hrs	2917 (7343 Metric)	Molded	0.169 in	4.3 mm	General Purpose	Surface Mount	470 µF	10 mOhm
