MT-15B Series

Catalog

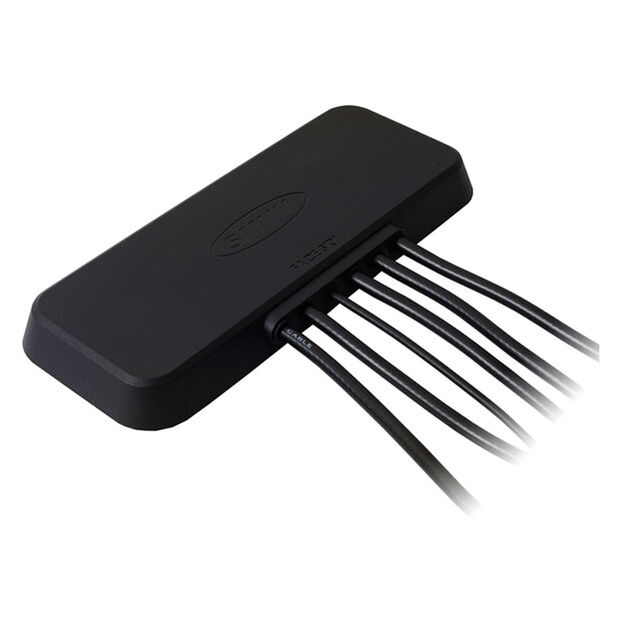

6 IN 1 COMBO EXTERNAL ANTENNA

Part	RF Family/Standard	Number of Bands	Gain	Frequency Group	Antenna Type	Frequency Range [Max]	Frequency Range [Min]	Frequency (Center/Band)	Return Loss	Applications	Height (Max) [Max] [z]	Height (Max) [Max] [z]	VSWR	Mounting Type	Ingress Protection
Unictron Technologies Corporation MT-15B-AS-BLLWWW01	Cellular Navigation WiFi	13	1.21 dBi 1.44 dBi 2.02 dBi 2.4 dBi 2.74 dBi 2.98 dBi 3.07 dBi 3.1 dBi 3.26 dBi 3.57 dBi 3.62 dBi 3.93 dBi 4.53 dBi 4.78 dBi 4.94 dBi 5.31 dBi	Wide Band	Module	1.563 GHz 1.576 GHz 1.607 GHz 2.17 GHz 2.69 GHz 5.15 GHz 960 MHz	1.559 GHz 1.574 GHz 1.597 GHz 1.71 GHz 2.3 GHz 3.3 GHz 698 MHz	1.561 GHz 1.575 GHz 1.602 GHz 1.795 GHz 1.92 GHz 2.045 GHz 2.4 GHz 2.495 GHz 3.55 GHz 5.5375 GHz 5.8 GHz 761 MHz 892 MHz	-10 dB -6 dB	5G BeiDou DCS Galileo GLONASS GNSS GPS GSM LTE PCS UMTS Wi-Fi	15.4 mm	0.606 in	2 3	Adhesive	IP67
