09300162 Series
Manufacturer: HARTING
Beta
⌘K
HAN B BASE SURFACE HC 1 LEVER METAL COVE ROHS COMPLIANT: NA
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Housing Material | Housing Color | Housing Finish | Style | Lock Location | Size | Thread Size | Ingress Protection | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

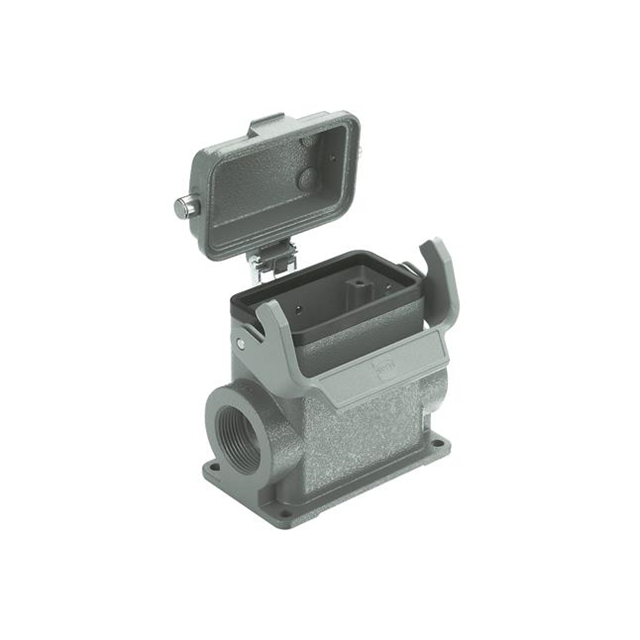

 HARTING | 125 °C | -40 C | 2.244 " | 57 mm | 3.189 " | 117 mm | 81 mm | 4.606 in | Aluminum Die Cast | Gray | Powder Coated | Side Entry | Locking Clip (1) on Base Bottom | 16 B | PG29 | IP65 - Dust Tight Water Resistant | Base - Box Mount |

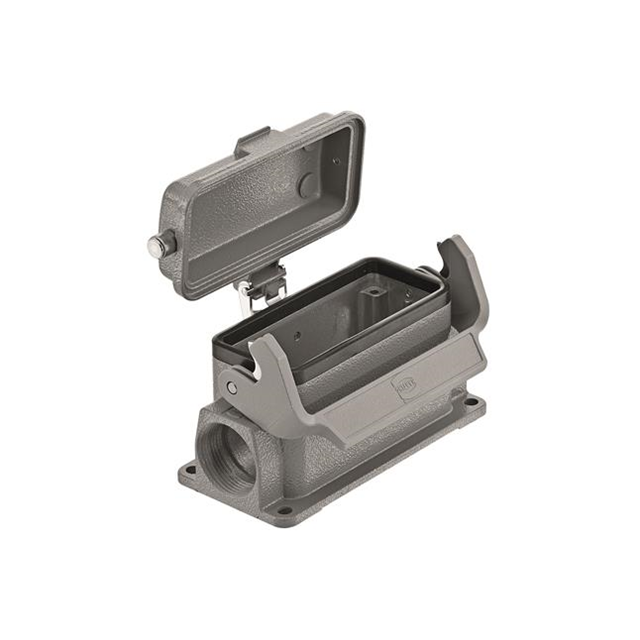

 HARTING | 125 °C | -40 C | 2.244 " | 57 mm | 3.189 " | 117 mm | 81 mm | 4.606 in | Aluminum Die Cast | Gray | Powder Coated | Side Entry | Locking Clip (1) on Base Bottom | 16 B | PG21 | IP65 - Dust Tight Water Resistant | Base - Box Mount |
