FCA75F Series
Manufacturer: Cosel USA, Inc.
Beta
⌘K

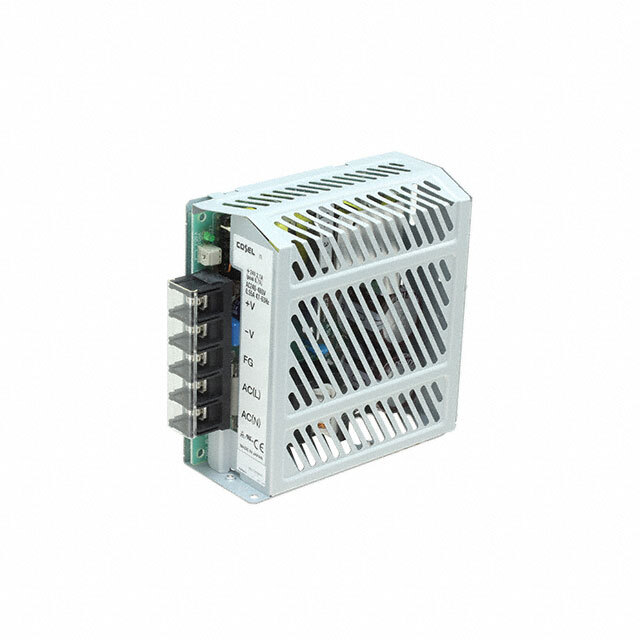

AC/DC DIN RAIL SUPPLY 24V 75W
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output (Max) [Max] | AC Voltage - Input [Min] | AC Voltage - Input [Max] | Power (Watts) | DC Voltage - Input (Max) [Max] | DC Voltage - Input (Min) [Min] | Number of Outputs | Approval Agency | Voltage - Output 1 | Voltage - Isolation | Applications | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Input Type | Current - Output 1 | Mounting Type | Features | Voltage - Input [Min] | Voltage - Input [Max] | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cosel USA, Inc. | -10 °C | 60 °C | 3.1 A | 187 VAC | 528 VAC | 75 W | 746 V | 265 V | 1 | CE cURus TUV | 24 V | 3000 V | ITE (Commercial) | 4.92 in | 5 in | 125 mm | 5 in | 150 mm | 5.91 in | AC or DC | ||||||
Cosel USA, Inc. | -10 °C | 60 °C | 3.1 A | 187 VAC | 528 VAC | 75 W | 746 V | 265 V | 1 | CE cURus TUV | 24 V | 3000 V | ITE (Commercial) | 4.92 in | 5 in | 125 mm | 5 in | 150 mm | 5.91 in | AC or DC | ||||||
Cosel USA, Inc. | -10 °C | 60 °C | 75 W | 1 | CE cURus TUV | 24 V | 3000 V | ITE (Commercial) | 4.92 in | 5 in | 125 mm | 5 in | 150 mm | 5.91 in | 3.1 A | Chassis Mount | DC Input Capable | 187 VAC 265 VDC | 528 VAC 746 VDC | Conformal Coated Enclosed | ||||||
 Cosel USA, Inc. | -10 °C | 60 °C | 75 W | 1 | CE cURus TUV | 24 V | 3000 V | ITE (Commercial) | 4.92 in | 5 in | 125 mm | 5 in | 150 mm | 5.91 in | 3.1 A | Chassis Mount | DC Input Capable | 187 VAC 265 VDC | 528 VAC 746 VDC | Enclosed |
