ELG687M Series
Manufacturer: KEMET
Beta
⌘K
CAP ALUM 680UF 20% 200V SNAP TH
| Part | Tolerance | Size / Dimension [diameter] | Size / Dimension [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Lead Spacing | Lead Spacing | Ripple Current @ Low Frequency | Lifetime @ Temp. | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Mounting Type | Capacitance | Polarization | Ripple Current @ High Frequency | Voltage - Rated | Package / Case | ESR (Equivalent Series Resistance) | Applications | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

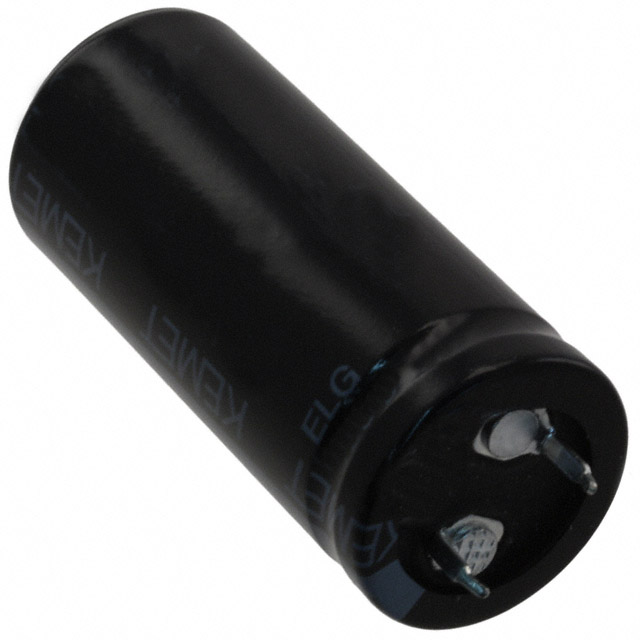

 KEMET | 20 % | 0.866 " | 22 mm | 105 ░C | -25 °C | 0.394 in | 10 mm | 1.75 A | 2000 Hrs | 2.047 in | 52 mm | Through Hole | 680 µF | Polar | 2.625 A | 200 VDC | Radial Can - Snap-In | 121 mOhm | General Purpose | |

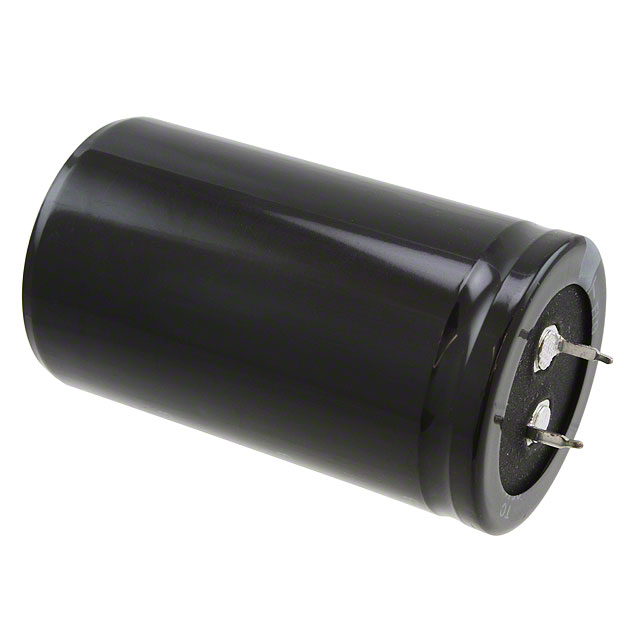

 KEMET | 20 % | 1.378 " | 35 mm | 105 ░C | -25 °C | 0.394 in | 10 mm | 2000 Hrs | 2.441 in | Through Hole | 680 µF | Polar | 450 V | Radial Can - Snap-In | 110 mOhm | General Purpose | 62 mm |
