AMPMODU Small Centerline Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

Catalog

SCL 1.0 RCPT DR VT 100 SMT G1 TBK

...

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Mounting Type	Termination	Insulation Height	Insulation Height	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Number of Positions Loaded	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Insulation Color	Fastening Type	Features	Number of Rows [custom]	Connector Type	Number of Positions	Insulation Material	Contact Shape	Shrouding	Contact Length - Mating	Contact Length - Mating	Contact Material	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Post
TE Connectivity AMP Connectors 1MM-R-D50-VS-00-F-TBP	5 µin	0.127 µm	Gold	-55 C	125 °C	30 VAC	Surface Mount	Solder	3 mm	0.118 in	0.039 in	1 mm	Female Socket	All	Tin	1 mm	0.039 in	UL94 V-0	Black	Push-Pull	Pick and Place	2	Receptacle	100
TE Connectivity AMP Connectors 1MM-R-D21-VS-00-H-TRP	30 Áin	0.76 Ám	Gold	-55 C	125 °C	30 VAC	Surface Mount	Solder	3 mm	0.118 in	0.039 in	1 mm	Female Socket	All	Tin	1 mm	0.039 in	UL94 V-0	Black	Push-Pull	Pick and Place	2	Receptacle	42
TE Connectivity AMP Connectors 1MM-R-D27-VS-00-H-TRP	30 Áin	0.76 Ám	Gold	-55 C	125 °C	30 VAC	Surface Mount	Solder	3 mm	0.118 in	0.039 in	1 mm	Female Socket	All	Tin	1 mm	0.039 in	UL94 V-0	Black	Push-Pull	Pick and Place	2	Receptacle	54
TE Connectivity AMP Connectors 1MM-HU-D10-VS-00-H-TRP	30 Áin	0.76 Ám	Gold	-55 C	125 °C	30 VAC	Surface Mount	Solder	1.5 mm	0.059 in	0.039 in	1 mm	Male Pin	All	Tin	1 mm	0.039 in	UL94 V-0	Black	Push-Pull	Pick and Place	2	Header Breakaway	20	Liquid Crystal Polymer (LCP)	Square	Unshrouded	2.1 mm	0.083 in	Phosphor Bronze
TE Connectivity AMP Connectors 1MM-HU-D37-VS-00-F-TRP			Gold	-55 C	125 °C	30 VAC	Surface Mount	Solder	1.5 mm	0.059 in	0.039 in	1 mm	Male Pin	All	Tin	1 mm	0.039 in	UL94 V-0	Black	Push-Pull	Pick and Place	2	Header Breakaway	74	Liquid Crystal Polymer (LCP)	Square	Unshrouded	2.1 mm	0.083 in	Phosphor Bronze	3.94 µin	0.1 µm
TE Connectivity AMP Connectors 1MM-R-D29-VS-00-H-TRP	30 Áin	0.76 Ám	Gold	-55 C	125 °C	30 VAC	Surface Mount	Solder	3 mm	0.118 in	0.039 in	1 mm	Female Socket	All	Tin	1 mm	0.039 in	UL94 V-0	Black	Push-Pull	Pick and Place	2	Receptacle	58

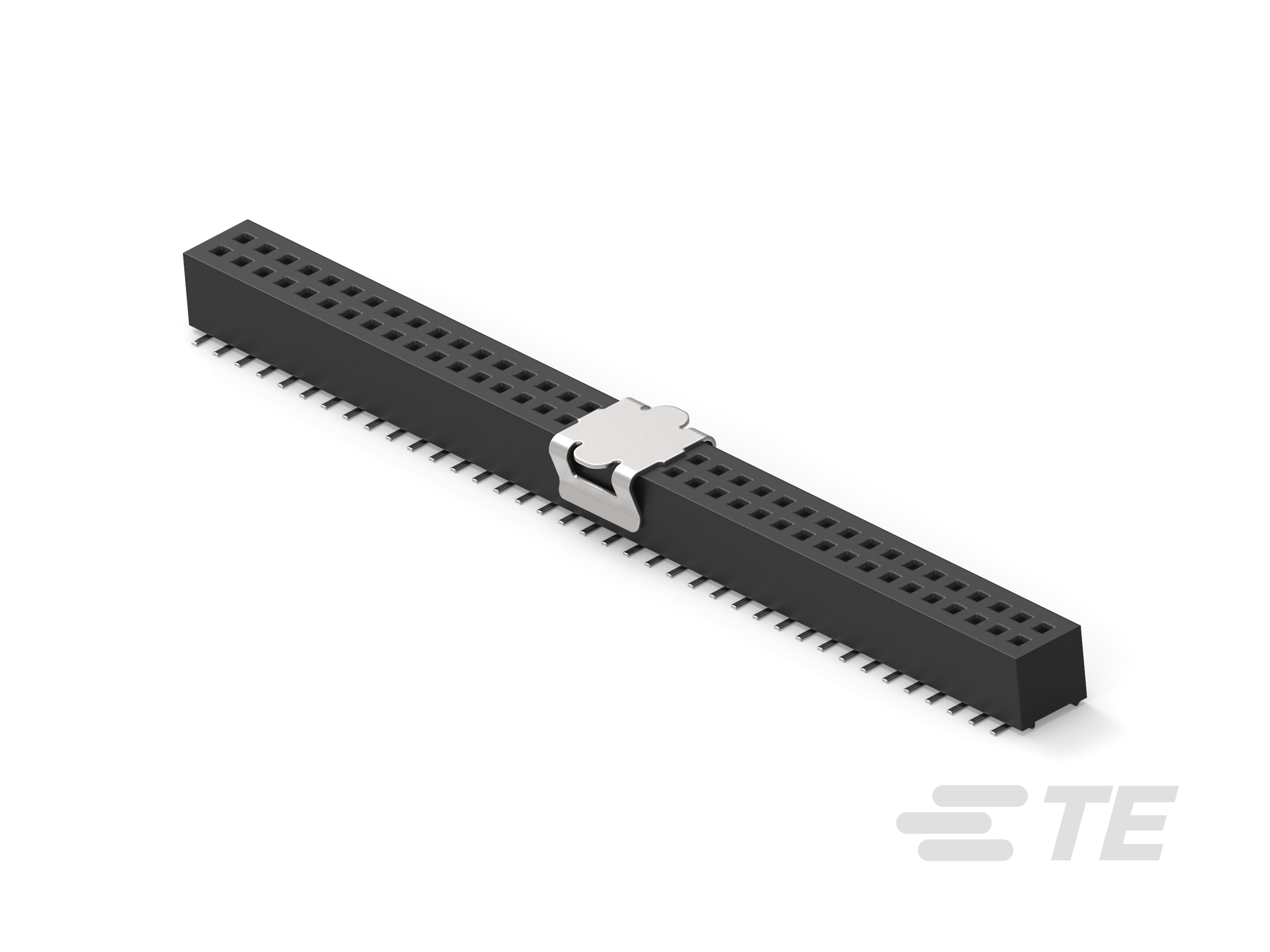

TE Connectivity AMP Connectors 1MM-R-D38-VS-00-F-TRP	5 µin	0.127 µm	Gold	-55 C	125 °C	30 VAC	Surface Mount	Solder	3 mm	0.118 in	0.039 in	1 mm	Female Socket	All	Tin	1 mm	0.039 in	UL94 V-0	Black	Push-Pull	Pick and Place	2	Receptacle	76
TE Connectivity AMP Connectors 1MM-R-D47-VS-00-H-TBP	30 Áin	0.76 Ám	Gold	-55 C	125 °C	30 VAC	Surface Mount	Solder			0.039 in	1 mm	Female Socket	All	Tin	1 mm	0.039 in	UL94 V-0	Black	Push-Pull	Pick and Place	2	Receptacle	94									0.13 in	3.3 mm
TE Connectivity AMP Connectors 1MM-R-D48-VS-00-H-TBP	30 Áin	0.76 Ám	Gold	-55 C	125 °C	30 VAC	Surface Mount	Solder			0.039 in	1 mm	Female Socket	All	Tin	1 mm	0.039 in	UL94 V-0	Black	Push-Pull	Pick and Place	2	Receptacle	96	Thermoplastic	Square				Copper Alloy			0.13 in	3.3 mm	3.81 Ám

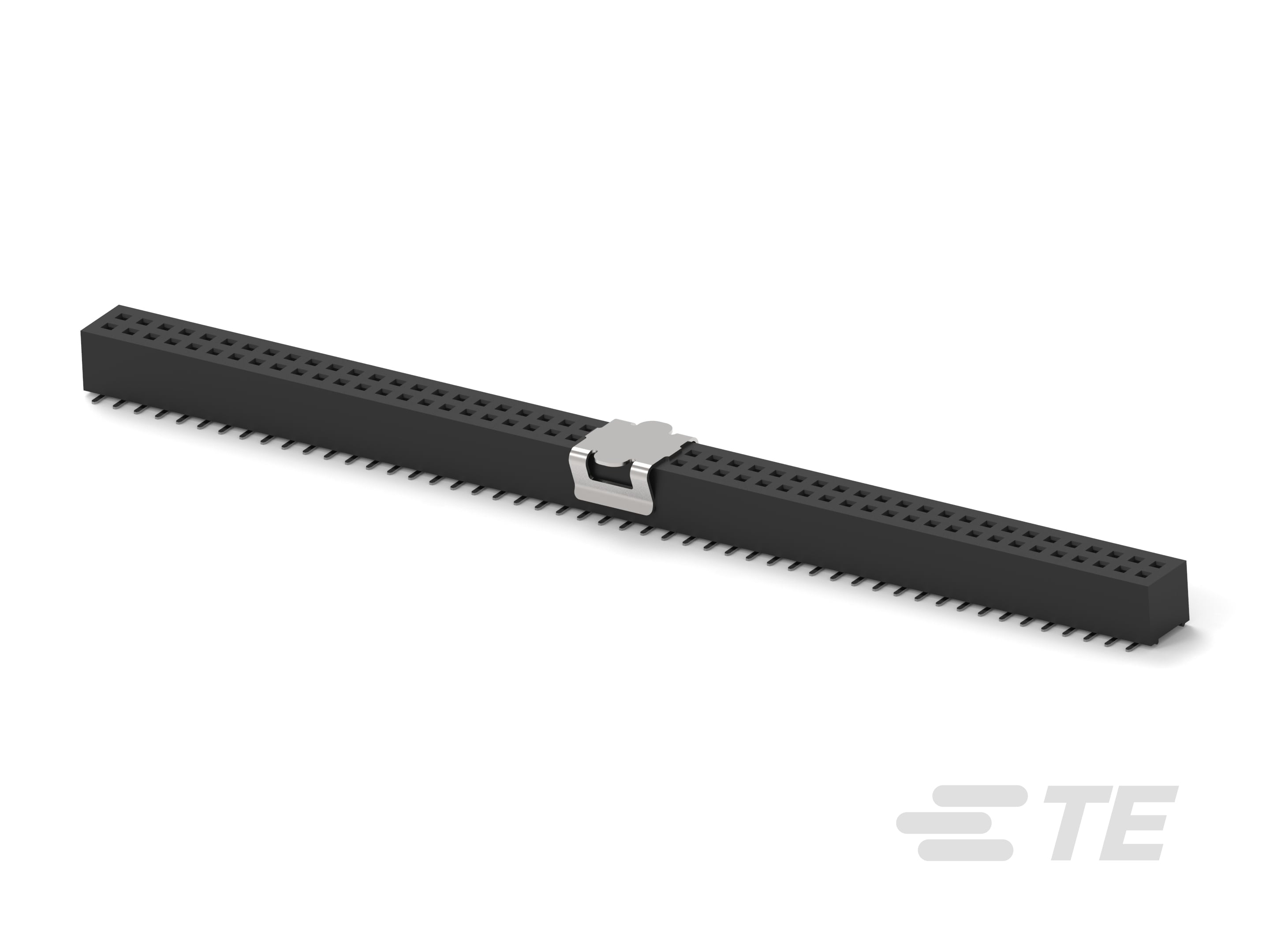

TE Connectivity AMP Connectors 1MM-R-D26-VS-00-F-TRP	5 µin	0.127 µm	Gold	-55 C	125 °C	30 VAC	Surface Mount	Solder	3 mm	0.118 in	0.039 in	1 mm	Female Socket	All	Tin	1 mm	0.039 in	UL94 V-0	Black	Push-Pull	Pick and Place	2	Receptacle	52
