S14B-XH Series

Catalog

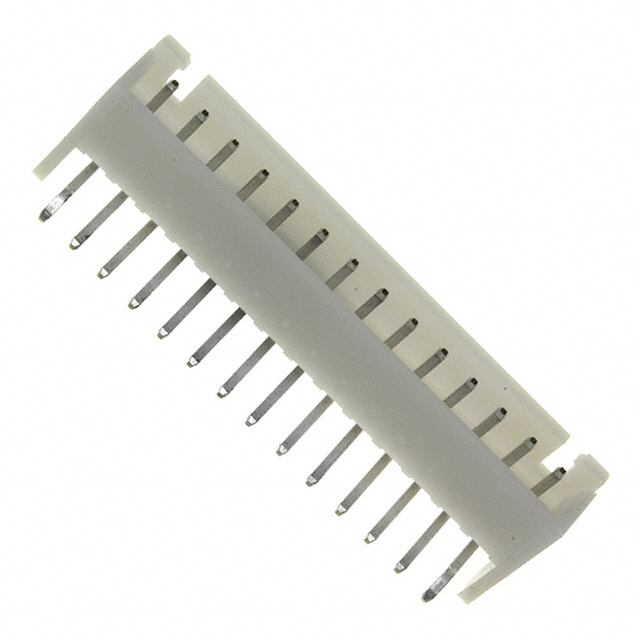

CONN HEADER R/A 14POS 2.5MM

Part	Contact Length - Post [x]	Contact Length - Post	Insulation Height [z]	Insulation Height [z]	Contact Shape	Termination	Style	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Mounting Type	Fastening Type	Current Rating (Amps)	Number of Positions	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Material	Connector Type	Shrouding	Number of Rows	Number of Positions Loaded	Insulation Material	Material Flammability Rating
JST Sales America Inc. S14B-XH-A	0.134 "	3.4 mm	6.1 mm	0.24 in	Square	Press-Fit Solder	Board to Cable/Wire	Male Pin	85 °C	-25 °C	250 V	Right Angle Through Hole	Detent Lock	3 A	14	Tin	2.5 mm	0.098 in	Natural	Brass	Header	Shrouded - 4 Wall	1	All	Nylon 6/6 Polyamide (PA66)	UL94 V-0
JST Sales America Inc. S14B-XH-A-1	0.134 "	3.4 mm	6.1 mm	0.24 in	Square	Press-Fit Solder	Board to Cable/Wire	Male Pin	85 °C	-25 °C	250 V	Right Angle Through Hole	Detent Lock	3 A	14	Tin	2.5 mm	0.098 in	Natural	Brass	Header	Shrouded - 4 Wall	1	All	Nylon 6/6 Polyamide (PA66)	UL94 V-0
