438-023 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CARD EDGE METAL TO METAL 2 PIECE CONNECTORS
| Part | Material - Insulation | Termination Rows [custom] | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Color | Number of Rows [custom] | Card Thickness | Card Thickness | Gender | Contact Finish | Pitch | Pitch | Flange Feature [diameter] | Flange Feature [diameter] | Number of Positions | Card Type | Termination | Note | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Panel Mount Through Hole | 0.25 Ám | 10 Áin | -65 ░C | 125 °C | Copper Alloy | Green | 2 | 1.57 mm | 0.062 in | Female | Gold | 5.08 mm | 0.2 in | 3.25 mm | 0.128 " | 23 | Non Specified - Dual Edge | Wire Wrap | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Panel Mount Through Hole | 0.25 Ám | 10 Áin | -65 ░C | 125 °C | Copper Alloy | Green | 2 | 2.36 mm | 0.093 " | Female | Gold | 5.08 mm | 0.2 in | 3.25 mm | 0.128 " | 23 | Non Specified - Dual Edge | Wire Wrap | ||

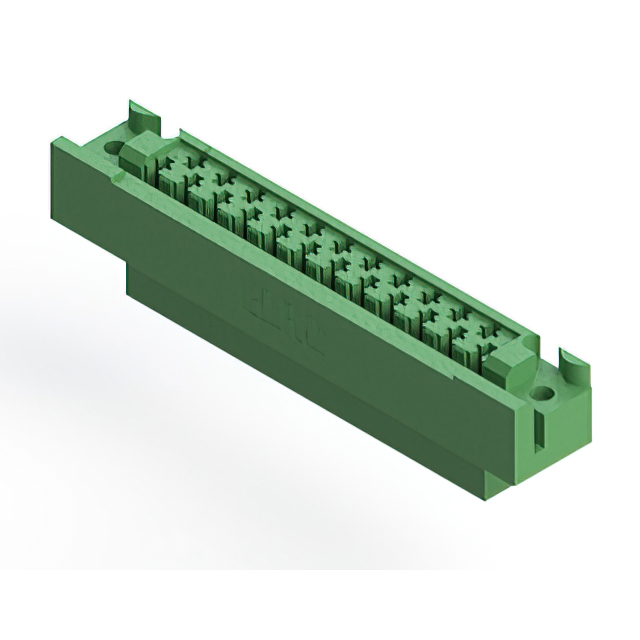

 EDAC Inc. | Polyphenylene Sulfide (PPS) | -65 ░C | 125 °C | Green | 1.57 mm | 0.062 in | 5.08 mm | 0.2 in | 3.25 mm | 0.128 " | 23 | Non Specified - Dual Edge | Contacts Not Included | UL94 V-0 | |||||||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Panel Mount Through Hole | 0.25 Ám | 10 Áin | -65 ░C | 125 °C | Copper Alloy | Green | 2 | 2.36 mm | 0.093 " | Female | Gold | 5.08 mm | 0.2 in | 3.25 mm | 0.128 " | 23 | Non Specified - Dual Edge | Solder | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Panel Mount Through Hole | 0.25 Ám | 10 Áin | -65 ░C | 125 °C | Copper Alloy | Green | 2 | 1.57 mm | 0.062 in | Female | Gold | 5.08 mm | 0.2 in | 3.25 mm | 0.128 " | 23 | Non Specified - Dual Edge | Solder |
