T4141L Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

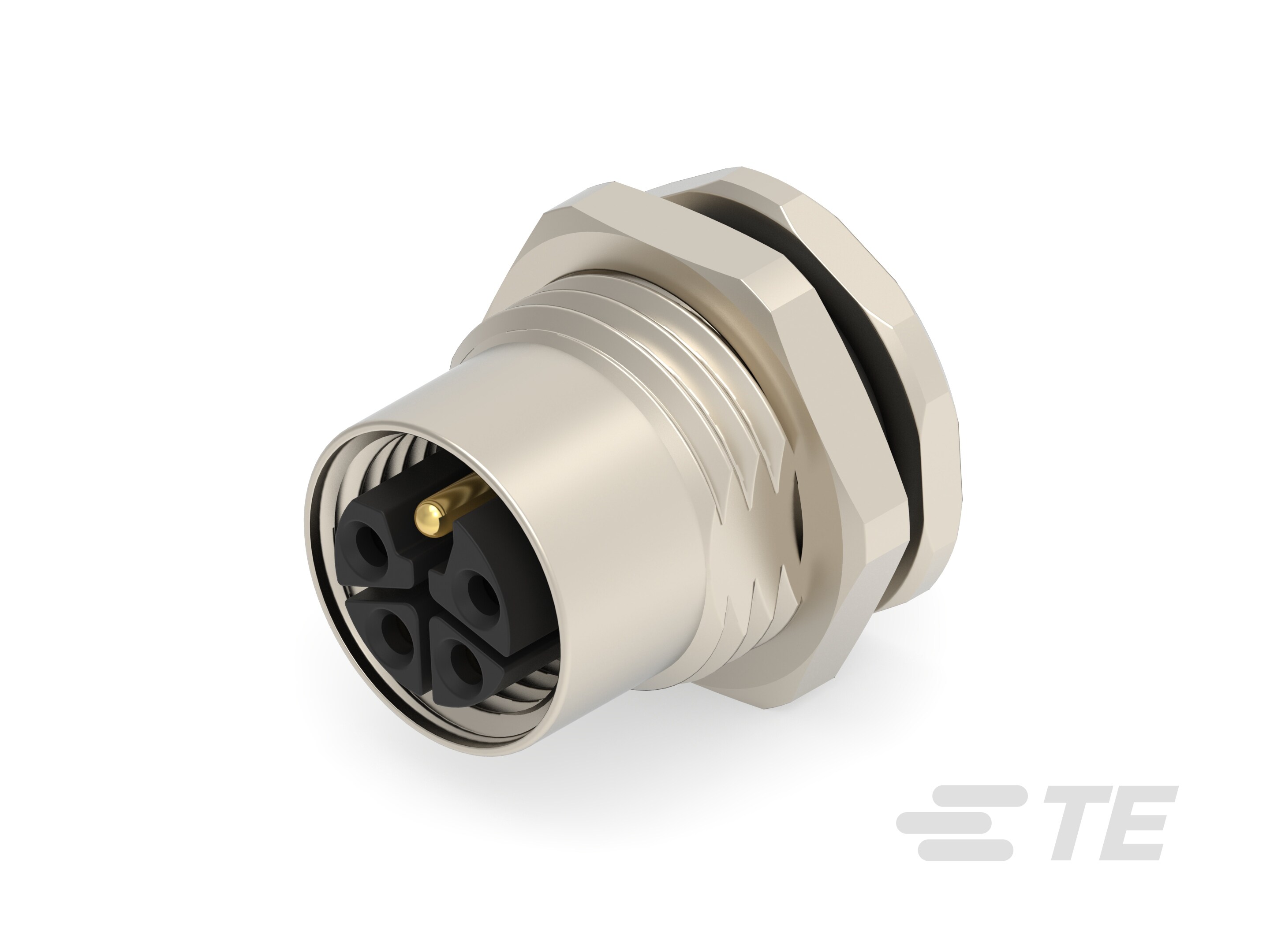

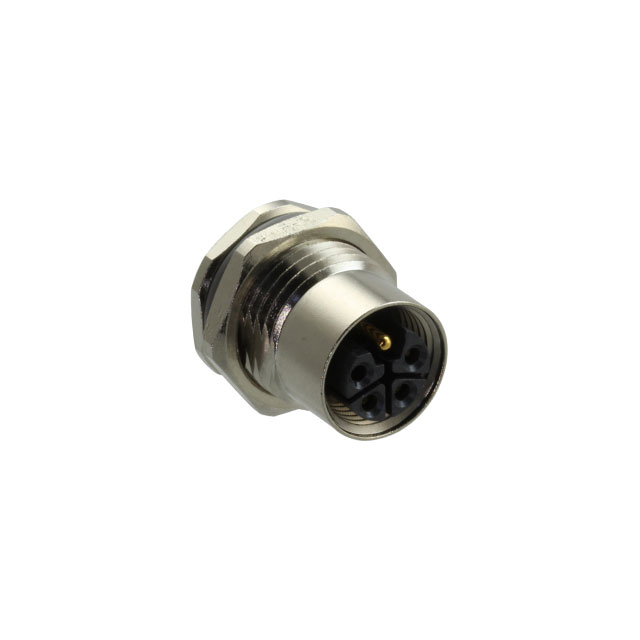

CIRCULAR METRIC CONNECTORS M12,REAR MOUNT,FMLE L,2P+PE,SOLDER PCB
| Part | Applications | Insert Material | Contact Material | Contact Finish - Mating | Mounting Type | Termination | Voltage Rating | Ingress Protection | Number of Positions | Shielding | Mounting Feature | Shell Finish | Orientation | Current Rating (Amps) | Primary Material | Material Flammability Rating | Connector Type | Color | Shell Size - Insert | Fastening Type | Shell Material | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Automation Control Industrial Lighting | Liquid Crystal Polymer (LCP) | Copper Alloy | Gold | Panel Mount Through Hole | Solder | 63 V | IP67 - Dust Tight Waterproof | 3 | Unshielded | Bulkhead - Front Side Nut | Nickel | L | 16 A | Metal | UL94 V-0 | Receptacle Female Sockets | Silver | M12-3 | Threaded | Copper Alloy | 85 °C | -40 C |
 TE Connectivity AMP Connectors | Automation Control Industrial Lighting | Liquid Crystal Polymer (LCP) | Copper Alloy | Gold | Panel Mount Through Hole | Solder | 63 V | IP67 - Dust Tight Waterproof | 5 | Unshielded | Bulkhead - Front Side Nut | Nickel | L | 16 A | Metal | UL94 V-0 | Receptacle Female Sockets | Silver | M12-5 | Threaded | Copper Alloy | 85 °C | -40 C |
 TE Connectivity AMP Connectors | Automation Control Industrial Lighting | Liquid Crystal Polymer (LCP) | Copper Alloy | Gold | Panel Mount Through Hole | Solder | 63 V | IP67 - Dust Tight Waterproof | 4 | Unshielded | Bulkhead - Front Side Nut | Nickel | L | 16 A | Metal | UL94 V-0 | Receptacle Female Sockets | Silver | M12-4 | Threaded | Copper Alloy | 85 °C | -40 C |
