68022 Series

Catalog

CONN HEADER R/A 4POS 2.54MM

Part	Current Rating (Amps)	Contact Type	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Voltage Rating	Contact Length - Post [x]	Contact Length - Post	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Mounting Type	Termination	Number of Positions Loaded	Contact Finish - Mating	Contact Material	Number of Rows	Number of Positions	Fastening Type	Connector Type	Shrouding	Contact Finish - Post

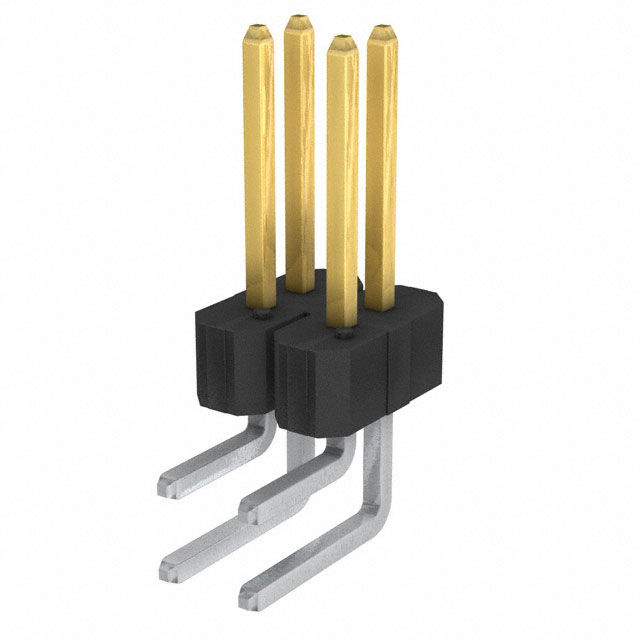

Amphenol ICC (FCI) 68022-204HLF	5 A	Male Pin	0.1 in	2.54 mm	UL94 V-0	0.24 in	6.1 mm	2.54 mm	0.1 in	Black	110 VDC	0.11 in	2.79 mm	0.318 "	8.08 mm	15 µin	0.38 µm	Square	Through Hole Right Angle	Solder	All	Gold or Gold GXT™	Phosphor Bronze	2	4	Push-Pull	Header	Unshrouded
Amphenol ICC (FCI) 68022-236HLF	5 A	Male Pin	0.1 in	2.54 mm	UL94 V-0	0.24 in	6.1 mm	2.54 mm	0.1 in	Black	110 VDC	0.11 in	2.79 mm	0.318 "	8.08 mm	15 µin	0.38 µm	Square	Through Hole Right Angle	Solder	All	Gold or Gold GXT™	Phosphor Bronze	2	36	Push-Pull	Header	Unshrouded
Amphenol ICC (FCI) 68022-258HLF	5 A	Male Pin	0.1 in	2.54 mm	UL94 V-0	0.24 in	6.1 mm	2.54 mm	0.1 in	Black	110 VDC	0.11 in	2.79 mm	0.318 "	8.08 mm	15 µin	0.38 µm	Square	Through Hole Right Angle	Solder	All	Gold or Gold GXT™	Phosphor Bronze	2	58	Push-Pull	Header	Unshrouded
Amphenol ICC (FCI) 68022-372	5 A	Male Pin	0.1 in	2.54 mm	UL94 V-0	0.24 in	6.1 mm	2.54 mm	0.1 in	Black	110 VDC	0.11 in	2.79 mm	0.318 "	8.08 mm	50 µin	1.27 µm	Square	Through Hole Right Angle	Solder	All	Gold or Gold GXT™	Phosphor Bronze	2	72	Push-Pull	Header	Unshrouded
Amphenol ICC (FCI) 68022-228HLF	5 A	Male Pin	0.1 in	2.54 mm	UL94 V-0	0.24 in	6.1 mm	2.54 mm	0.1 in	Black	110 VDC	0.11 in	2.79 mm	0.318 "	8.08 mm	15 µin	0.38 µm	Square	Through Hole Right Angle	Solder	All	Gold or Gold GXT™	Phosphor Bronze	2	28	Push-Pull	Header	Unshrouded

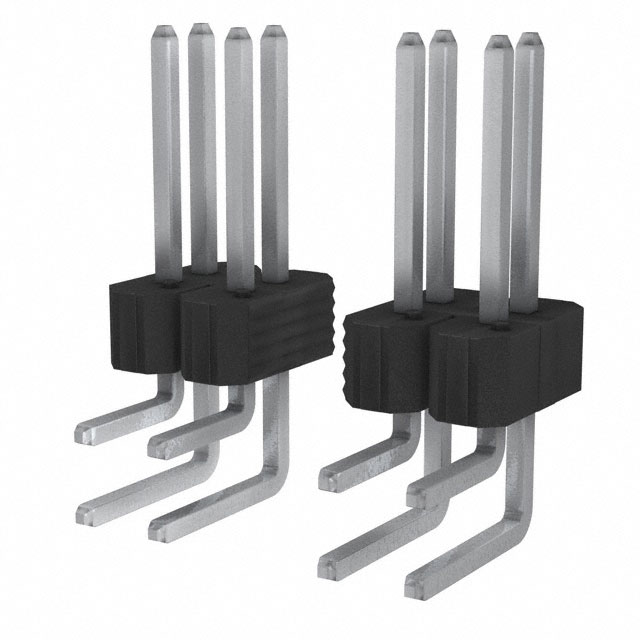

Amphenol ICC (FCI) 68022-426HLF	5 A	Male Pin	0.1 in	2.54 mm	UL94 V-0	0.24 in	6.1 mm	2.54 mm	0.1 in	Black	110 VDC	0.11 in	2.79 mm	0.318 "	8.08 mm	100 çin	2.54 çm	Square	Through Hole Right Angle	Solder	All		Phosphor Bronze	2	26	Push-Pull	Header	Unshrouded	Tin
Amphenol ICC (FCI) 68022-252HLF	5 A	Male Pin	0.1 in	2.54 mm	UL94 V-0	0.24 in	6.1 mm	2.54 mm	0.1 in	Black	110 VDC	0.11 in	2.79 mm	0.318 "	8.08 mm	15 µin	0.38 µm	Square	Through Hole Right Angle	Solder	All	Gold or Gold GXT™	Phosphor Bronze	2	52	Push-Pull	Header	Unshrouded
Amphenol ICC (FCI) 68022-470HLF	5 A	Male Pin	0.1 in	2.54 mm	UL94 V-0	0.24 in	6.1 mm	2.54 mm	0.1 in	Black	110 VDC	0.11 in	2.79 mm	0.318 "	8.08 mm	100 çin	2.54 çm	Square	Through Hole Right Angle	Solder	All		Phosphor Bronze	2	70	Push-Pull	Header	Unshrouded	Tin
Amphenol ICC (FCI) 68022-108HLF	5 A	Male Pin	0.1 in	2.54 mm	UL94 V-0	0.24 in	6.1 mm	2.54 mm	0.1 in	Black	110 VDC	0.11 in	2.79 mm	0.318 "	8.08 mm	30 Áin	0.76 Ám	Square	Through Hole Right Angle	Solder	All	Gold or Gold GXT™	Phosphor Bronze	2	8	Push-Pull	Header	Unshrouded

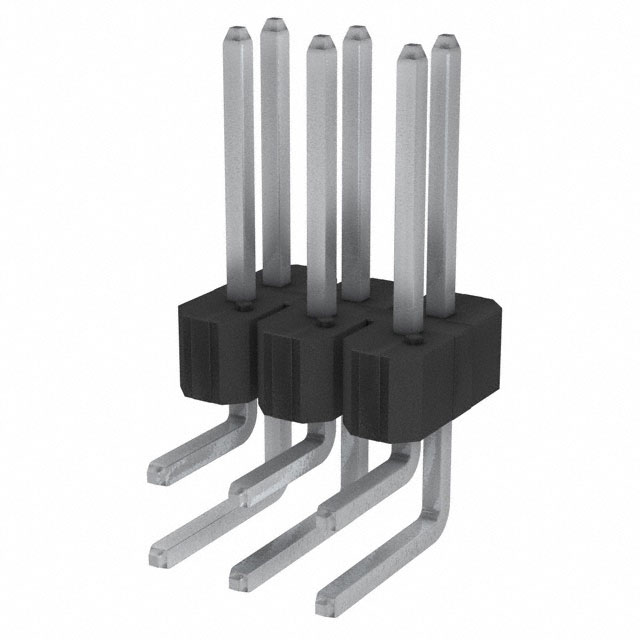

Amphenol ICC (FCI) 68022-406HLF	5 A	Male Pin	0.1 in	2.54 mm	UL94 V-0	0.24 in	6.1 mm	2.54 mm	0.1 in	Black	110 VDC	0.11 in	2.79 mm	0.318 "	8.08 mm	100 çin	2.54 çm	Square	Through Hole Right Angle	Solder	All		Phosphor Bronze	2	6	Push-Pull	Header	Unshrouded	Tin
