D22012 Series

Catalog

SWITCH TOGGLE SPDT 0.4VA 48V

Part	Electrical Life	Actuator Material	Current Rating (Amps)	Actuator Type	Voltage Rating - AC	Circuit	Voltage Rating - DC	Termination Style	Bushing Thread	Bushing Thread	Mounting Type	Actuator Length [x]	Illumination	Panel Cutout Dimensions [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function

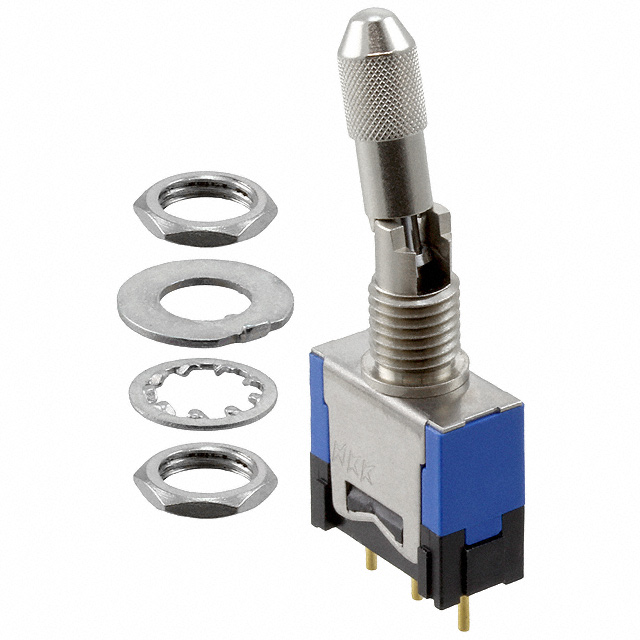

NKK Switches D22012LP	50000 Cycles	Brass Chrome Plated	0.4 VA	Locking Lever	48 V	SPDT	48 V	PC Pin	0.75	M6	Panel Mount	19.4 mm	Non-Illuminated	6.5 mm	70 °C	-10 °C	On-On
NKK Switches D22012H	50000 Cycles	Brass Chrome Plated	0.4 VA	Standard Round	48 V	SPDT	48 V	PC Pin		Unthreaded	Right Angle Through Hole		Non-Illuminated		70 °C	-10 °C	On-On

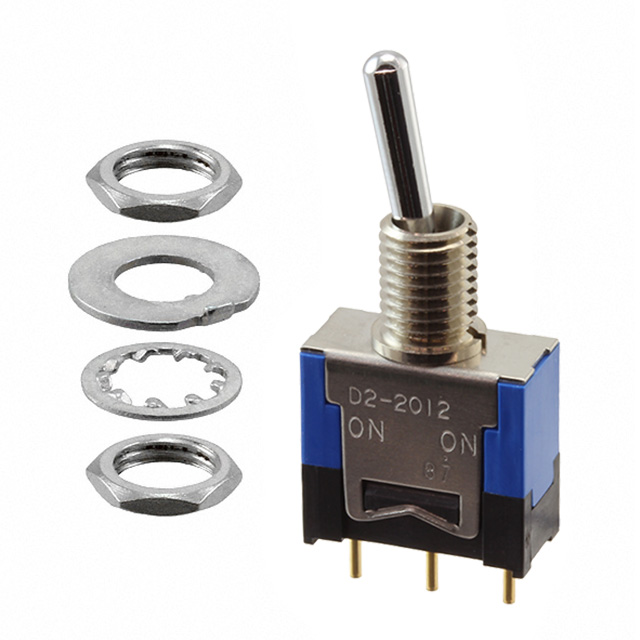

NKK Switches D22012P	50000 Cycles	Brass Chrome Plated	0.4 VA	Standard Round	48 V	SPDT	48 V	PC Pin	0.75	M6	Panel Mount		Non-Illuminated	6.5 mm	70 °C	-10 °C	On-On

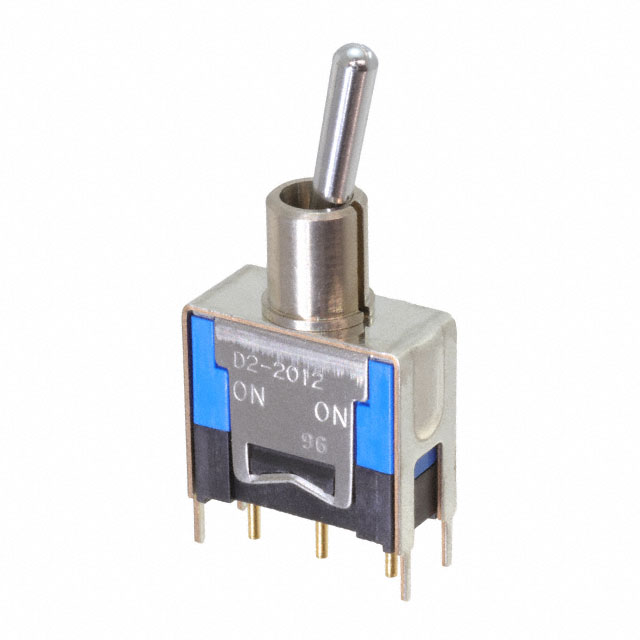

NKK Switches D22012B	50000 Cycles	Brass Chrome Plated	0.4 VA	Standard Round	48 V	SPDT	48 V	PC Pin		Unthreaded	Through Hole		Non-Illuminated		70 °C	-10 °C	On-On
