56S106 Series
Manufacturer: Rosenberger
Beta
⌘K

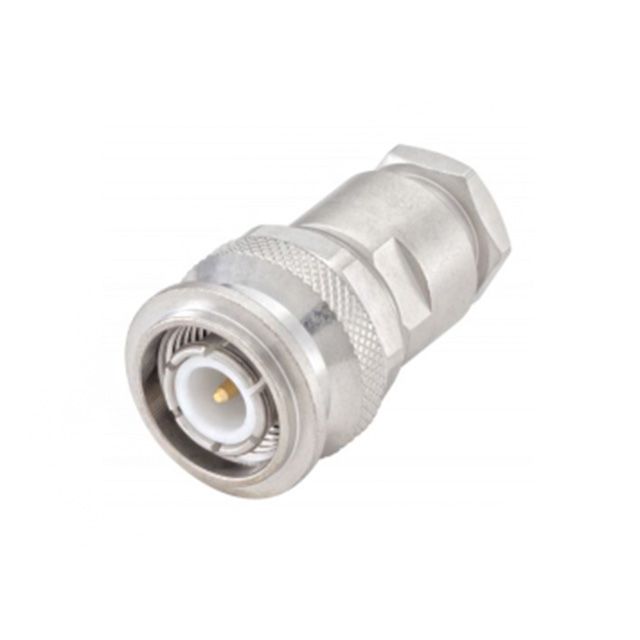

CONN TNC PLUG STR 50OHM SOLDER
| Part | Mating Cycles | Includes | Body Finish | Body Material | Dielectric Material | Center Contact Plating | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Termination | Frequency - Max [Max] | Center Contact Material | Fastening Type | Connector Type | Shield Termination | Cable Group | Housing Color | Connector Style | Impedance | Ingress Protection | Number of Ports | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 500 | 1 Connector 1 Contact 1 Gasket 1 Nut 1 Washer 2 Clamps 2 Insulators | White Bronze | Brass | Polytetrafluoroethylene (PTFE) | Gold | 500 V | -65 ░C | 165 °C | Solder | 10 GHz | Brass | Threaded | Plug Male Pin | Clamp | 141 RG-58C | Silver | TNC | 50 Ohms | IP63 - Dust Tight Water Resistant | 1 | Free Hanging (In-Line) |
