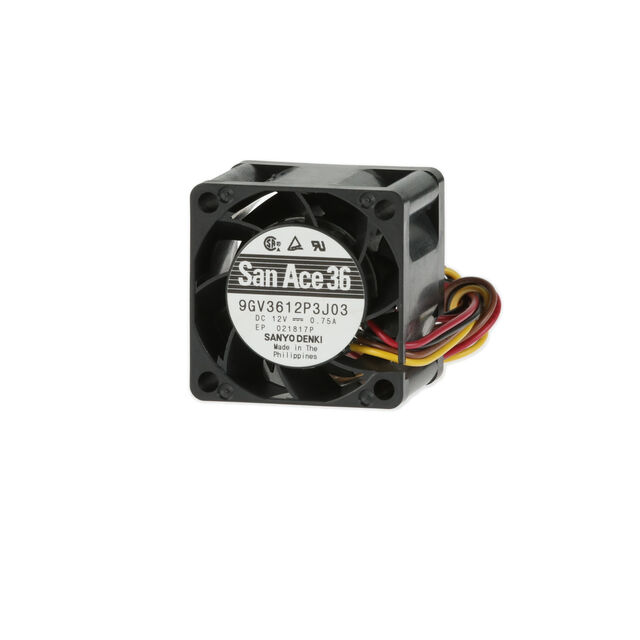

9GV3612 Series

Catalog

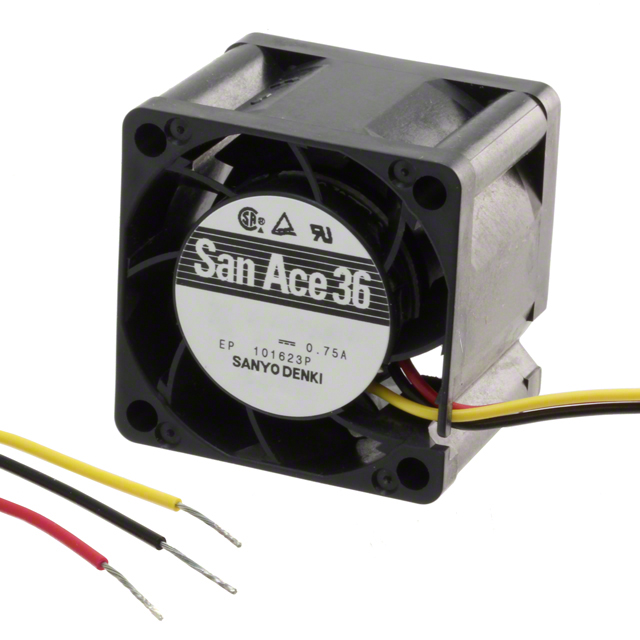

FAN AXIAL 36X28MM 12VDC WIRE

Part	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Air Flow	Air Flow	Current Rating (Amps)	Material - Blade	Lifetime @ Temp.	Voltage - Rated	Fan Type	Weight	Weight	Bearing Type	Noise	Power (Watts)	Size / Dimension [x]	Size / Dimension [y]	Width [x]	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	RPM	Static Pressure	Static Pressure	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Features
Sanyo Denki America Inc. 9GV3612J302	7 V	13.2 VDC	Plastic	19.4 CFM	0.543 m³/min	750 mA	Plastic	40000 Hrs	12 VDC	Tubeaxial	46.27 g	0.102 lb	Ball	58.5 dB	9 W	36 mm	36 mm	28 mm	-10 °C	60 °C	CSA TUV UL	19000 RPM	525.6 Pa	2.11 in H2O	2 Wire Leads
Sanyo Denki America Inc. 9GV3612G302	7 V	13.2 VDC	Plastic	14.1 CFM	0.395 m³/min	0.34 A	Plastic	40000 Hrs	12 VDC	Tubeaxial	46.27 g	0.102 lb	Ball	52 dB	4.1 W	36 mm	36 mm	28 mm	-10 °C	60 °C	CSA TUV UL	14000 RPM	274 Pa	1.1 in H2O	2 Wire Leads
Sanyo Denki America Inc. 9GV3612G301	7 V	13.2 VDC	Plastic	14.1 CFM	0.395 m³/min	0.34 A	Plastic	40000 Hrs	12 VDC	Tubeaxial	45.81 g	0.101 lb	Ball	52 dB		36 mm	36 mm	28 mm	-20 ░C	60 °C	CSA TUV UL	14000 RPM	275 Pa	1.104 in H2O	3 Wire Leads	60 °C	-4 °F	Speed Sensor (Tach)
Sanyo Denki America Inc. 9GV3612J3D01	7 V	13.2 VDC	Plastic	19.4 CFM	0.543 m³/min	750 mA	Plastic	40000 Hrs	12 VDC	Tubeaxial	46.27 g	0.102 lb	Ball	58.5 dB	9 W	36 mm	36 mm	28 mm	-20 ░C	60 °C	CSA TUV UL	19000 RPM	525.1 Pa	2.108 in H2O	3 Wire Leads	60 °C	-4 °F	Locked Rotor Sensor
