SC28 Series
Manufacturer: NXP USA Inc.
Beta
⌘K
IC UART DUAL W/FIFO 44-PLCC
| Part | Number of Channels | Channel Type | Data Rate (Max) | With False Start Bit Detection | Features | Package / Case | With Modem Control | Mounting Type | Package Length | Package Name | Package Width | FIFO Size | Voltage - Supply | Voltage - Supply | With Auto Flow Control | Protocol |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

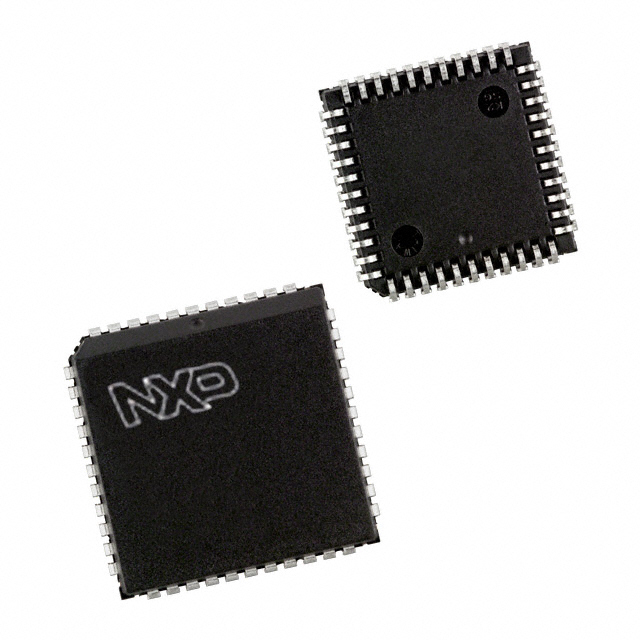

 NXP USA Inc. | 2 | DUART | 1000 kBaud | Yes | Configurable GPIO Internal Oscillator Timer/Counter | 44-LCC (J-Lead) | Yes | Surface Mount | 16.59 mm | 44-PLCC | 16.59 mm | 16 Byte | 3.3 V 5 VDC | 3.3V 5V | Yes | |
 NXP USA Inc. | 2 | DUART | 1000 kBaud | Yes | Configurable GPIO Internal Oscillator Timer/Counter | 48-VFQFN Exposed Pad | Yes | Surface Mount | 6 mm | 48-HVQFN | 6 mm | 16 Byte | 3.3 V 5 VDC | 3.3V 5V | Yes | |
 NXP USA Inc. | 4 | QUART | Yes | Internal Oscillator Timer/Counter | 68-LCC (J-Lead) | Yes | Surface Mount | 24.18 mm | 68-PLCC | 24.18 mm | 16 Byte | 3.3 V 5 VDC | 3.3V 5V | Yes | ||
 NXP USA Inc. | 8 | Yes | Internal Oscillator Timer/Counter | 84-LCC (J-Lead) | Yes | Surface Mount | 29.26 mm | 84-PLCC | 29.26 mm | 16 Byte | 3.3 V 5 VDC | 3.3V 5V | Yes | |||
 NXP USA Inc. | 1 | UART | 3.125 Mbps | Yes | Configurable GPIO Internal Oscillator Timer/Counter | Yes | Surface Mount | 0.24 in | 48-TFSOP 48-TSSOP | 6.1 mm | 256 Byte | 3.3 V 5 VDC | 3.3V 5V | Yes | RS485 | |
 NXP USA Inc. | 8 | Yes | Internal Oscillator Timer/Counter | 100-LQFP | Yes | Surface Mount | 14 mm | 100-LQFP | 14 mm | 16 Byte | 3.3 V 5 VDC | 3.3V 5V | Yes | |||
NXP USA Inc. | 8 | Yes | Internal Oscillator Timer/Counter | 84-LCC (J-Lead) | Yes | Surface Mount | 29.26 mm | 84-PLCC | 29.26 mm | 16 Byte | 3.3 V 5 VDC | 3.3V 5V | Yes | |||
NXP USA Inc. | 8 | Yes | Internal Oscillator Timer/Counter | 100-LQFP | Yes | Surface Mount | 14 mm | 100-LQFP | 14 mm | 16 Byte | 3.3 V 5 VDC | 3.3V 5V | Yes | |||

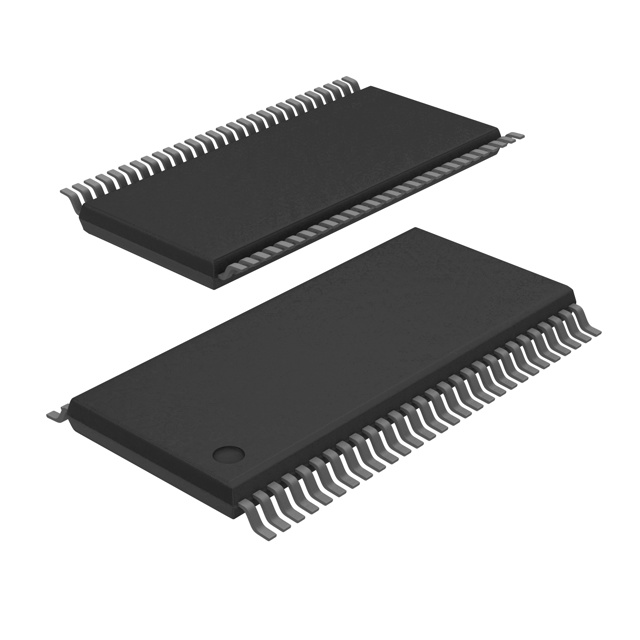

 NXP USA Inc. | 1 | UART | 3.125 Mbps | Yes | Configurable GPIO Internal Oscillator Timer/Counter | Yes | Surface Mount | 0.24 in | 56-TFSOP 56-TSSOP | 6.1 mm | 256 Byte | 3.3 V 5 VDC | 3.3V 5V | Yes | RS485 | |
NXP USA Inc. | 2 | DUART | 1000 kBaud | Yes | Configurable GPIO Internal Oscillator Timer/Counter | 48-VFQFN Exposed Pad | Yes | Surface Mount | 6 mm | 48-HVQFN | 6 mm | 16 Byte | 3.3 V 5 VDC | 3.3V 5V | Yes |
