HDF-S62 Series
Manufacturer: NorComp Inc.
Beta
⌘K
D SUB CONNECTOR, IP67, HIGH DENSITY, RECEPTACLE, NANOOK SERIES, 62 CONTACTS, DC, SOLDER CUP
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Contact Material | Color | Ingress Protection | Shell Size, Connector Layout | Shell Size, Connector Layout | Number of Rows [custom] | Contact Type | Material Flammability Rating | Current Rating (Amps) | Connector Type | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Connector Style | Mounting Type | Flange Feature | Shell Material, Finish | Features | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

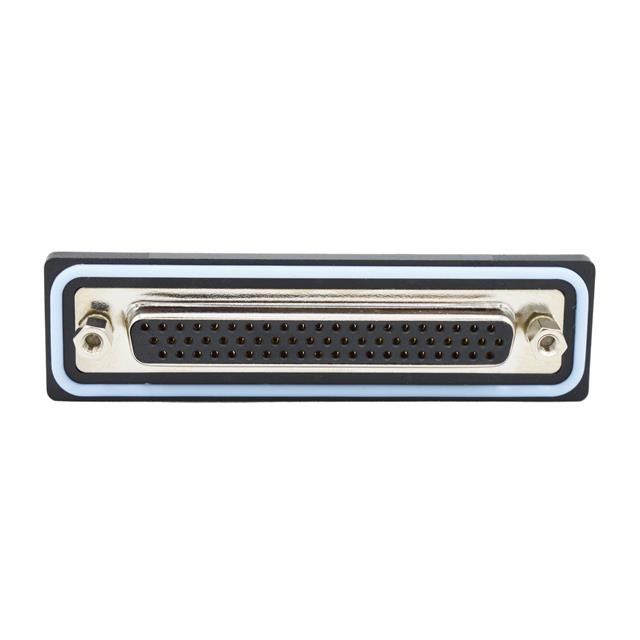

 NorComp Inc. | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Brass | Black | IP67 - Dust Tight Waterproof | C DC | 4 | 3 | Signal | UL94 V-0 | 3 A | Receptacle Female Sockets | Gold | 30 Áin | 0.76 Ám | 62 | D-Sub High Density | Panel Mount | 4-40 Mating Side Female Screwlock | Nickel Plated Steel | ||

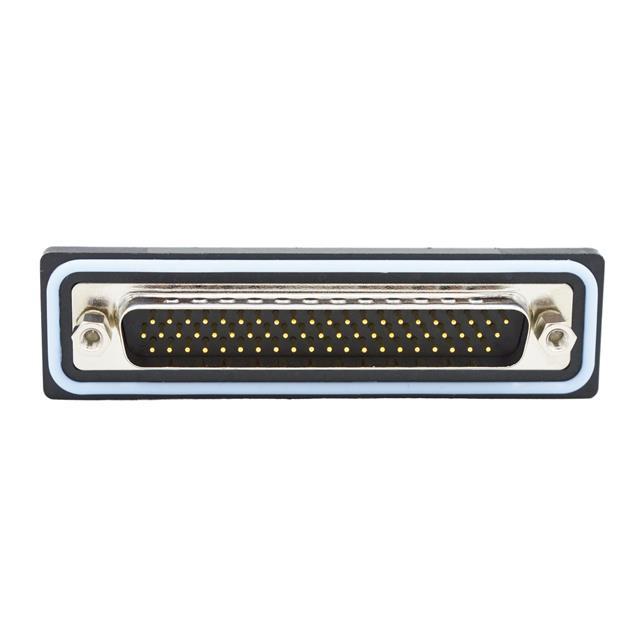

 NorComp Inc. | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Brass | Black | IP67 - Dust Tight Waterproof | C DC | 4 | 3 | Signal | UL94 V-0 | 3 A | Plug Male Pins | Gold | 30 Áin | 0.76 Ám | 62 | D-Sub High Density | Panel Mount | 4-40 Mating Side Female Screwlock | Nickel Plated Steel | Grounding Indents | |
NorComp Inc. | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Brass | Black | IP67 - Dust Tight Waterproof | C DC | 4 | 3 | Signal | UL94 V-0 | 3 A | Receptacle Female Sockets | Gold | 62 | D-Sub High Density | Panel Mount | 4-40 Mating Side Female Screwlock | Nickel Plated Steel | Flash |
