ANT-916 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

ANTENNA USP PCB RPC 916MHZ SMT T&R

Part	Applications	VSWR	Frequency Group [Max]	Frequency Group	Frequency Group [Min]	Mounting Type	Number of Bands	Height (Max) [Max] [z]	Height (Max)	Termination	RF Family/Standard	Frequency (Center/Band)	Antenna Type	Frequency Range [Min]	Frequency Range [Max]	Gain	Height (Max) [z]	Height (Max) [z]	Features	Termination	Ingress Protection
TE Connectivity AMP Connectors ANT-916-USP-T	ISM LoRa Sensor Networks Sigfox	2	1 GHz	UHF	300 MHz	Surface Mount	1	0.1 in	2.54 mm	Solder	General ISM	915 MHz	Chip	904 MHz	928 MHz	0.3 dBi
TE Connectivity AMP Connectors ANT-916-JJB-HT-T	ISM LoRa Sensor Networks Sigfox	2	1 GHz	UHF	300 MHz	Through Hole	1			Solder	General ISM	915 MHz	Whip Straight	902 MHz	928 MHz	-12.3 dBi	12.2 mm	0.48 in
TE Connectivity AMP Connectors ANT-916-MHW-SMA-S	ISM LoRa Sensor Networks Sigfox	1.9	1 GHz	UHF	300 MHz	Adhesive	1				General ISM	915 MHz	Whip Center-Fed Double	816 MHz	1.016 GHz	5.4 dBi	138 mm	5.433 in	Cable - 2m
TE Connectivity AMP Connectors ANT-916-MHW-SMA-L	ISM LoRa Sensor Networks Sigfox	1.9	1 GHz	UHF	300 MHz	Adhesive	1				General ISM	916 MHz	Whip Center-Fed Double	816 MHz	1.016 GHz	5.4 dBi	138 mm	5.433 in	Cable - 4.6m

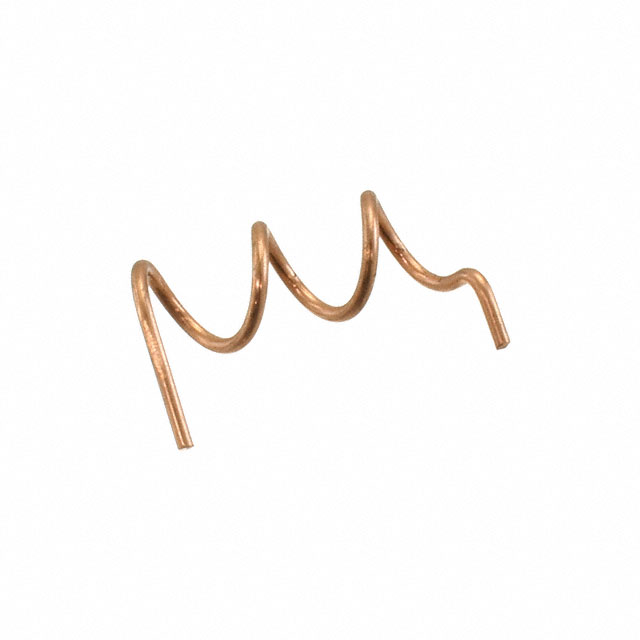

TE Connectivity AMP Connectors ANT-916-HESM	ISM LoRa Sensor Networks Sigfox	2	1 GHz	UHF	300 MHz	Surface Mount	1	0.35 in	8.9 mm	Solder	General ISM	915 MHz	Helical	865 MHz	965 MHz	2.4 dBi

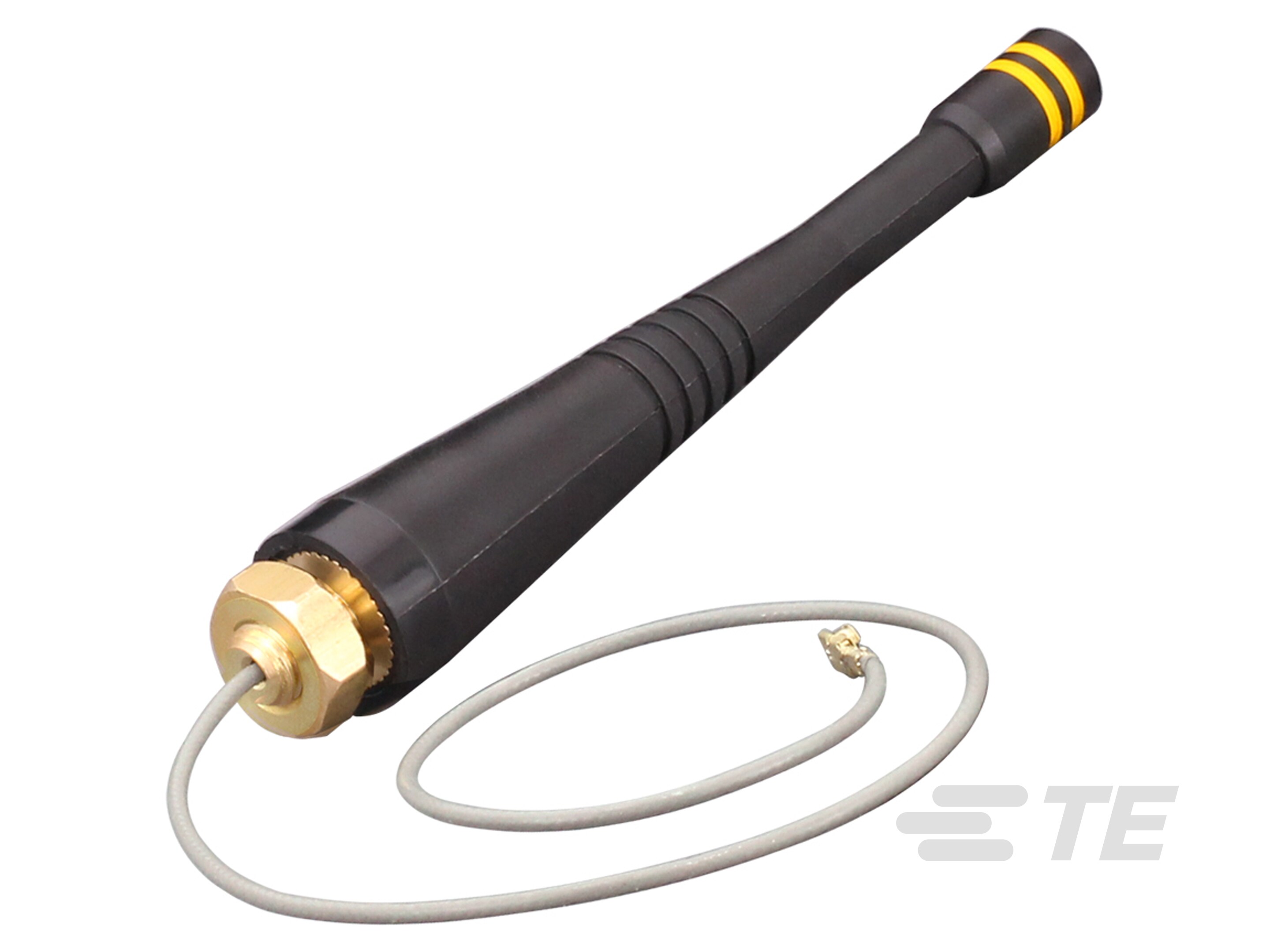

TE Connectivity AMP Connectors ANT-916-PW-QW-UFL	ISM LoRa Sensor Networks Sigfox	1.9	1 GHz	UHF	300 MHz	Panel Mount	1	3.15 in		I-PEX MHF1 U.FL (UMCC)	General ISM	915 MHz	Whip Straight	865 MHz	965 MHz	1.8 dBi	80 mm		Cable - 216mm	IPEX MHF1

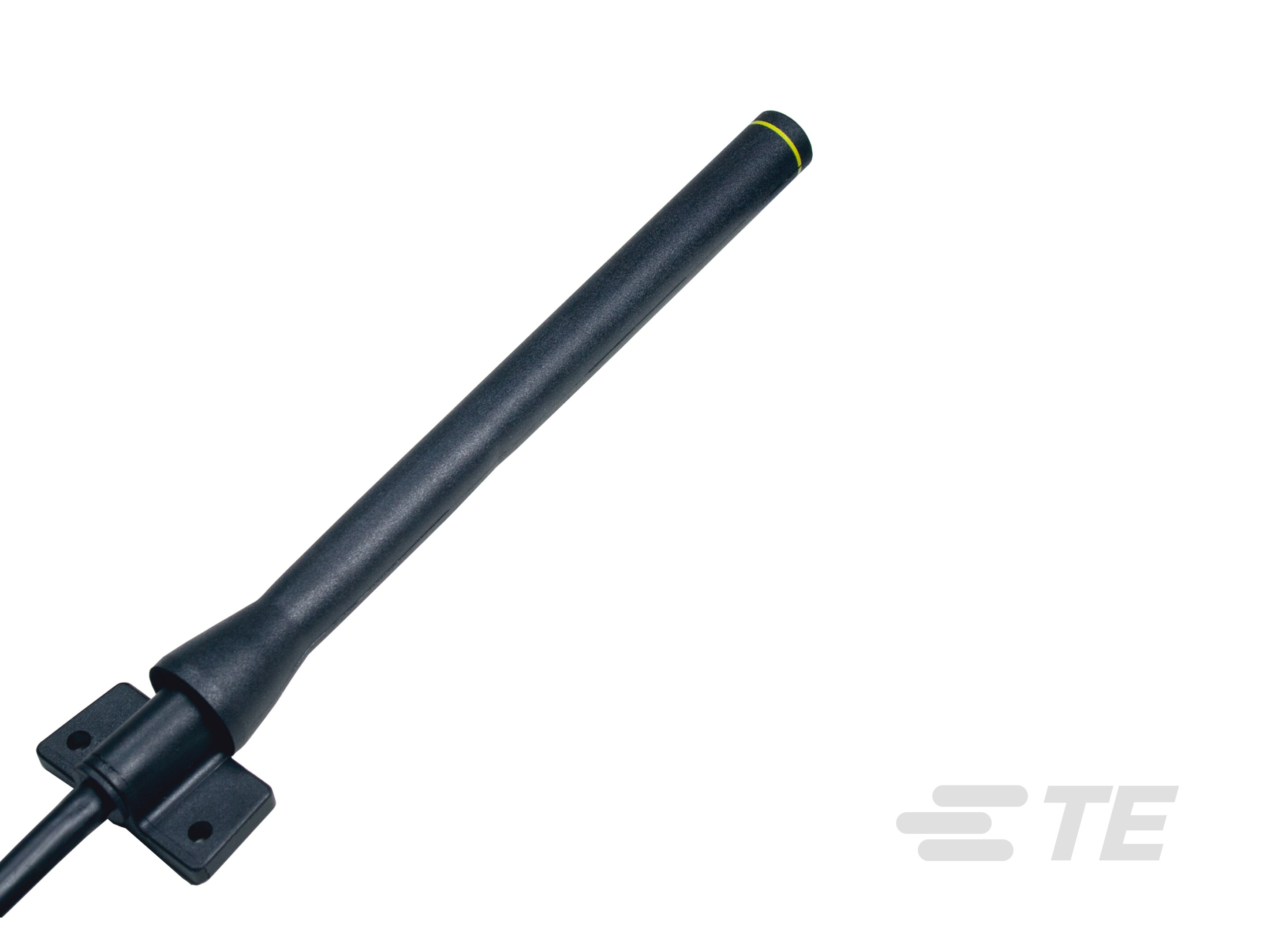

TE Connectivity AMP Connectors ANT-916-ID-2000-SMA	ISM LoRa Sensor Networks Sigfox	1.9	1 GHz	UHF	300 MHz	Bracket Mount	1	4.906 in			General ISM	915 MHz	Whip Straight	895 MHz	945 MHz	1.6 dBi	124.6 mm		Cable - 2m		IP67

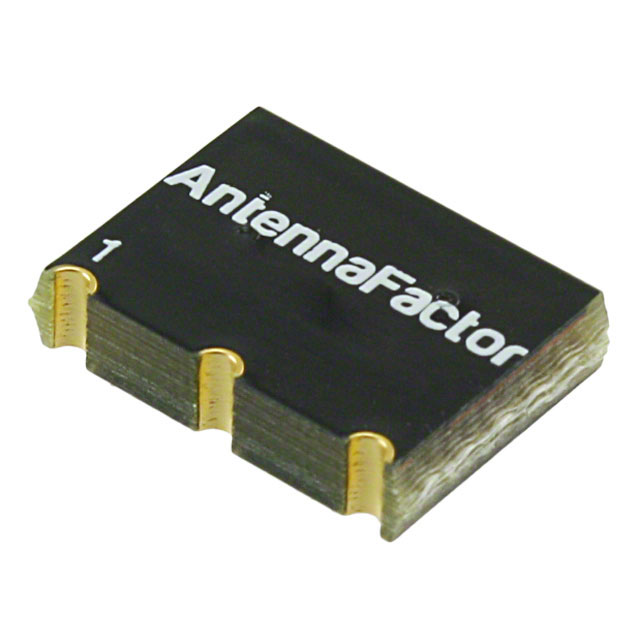

TE Connectivity AMP Connectors ANT-916-USP	ISM LoRa Sensor Networks Sigfox	1.9	1 GHz	UHF	300 MHz	Surface Mount	1	0.1 in	2.54 mm	Solder	General ISM	915 MHz	Chip	904 MHz	928 MHz	0.3 dBi

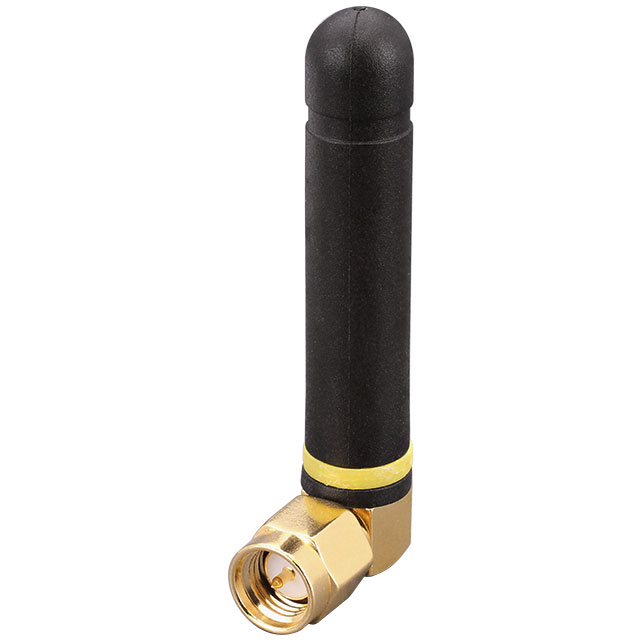

TE Connectivity AMP Connectors ANT-916-CW-RAH-SMA		1.9	1 GHz	UHF	300 MHz	Connector Mount	1	1.829 in		SMA		916 MHz	Right Angle Whip	850 MHz	970 MHz	2.2 dBi	46.46 mm

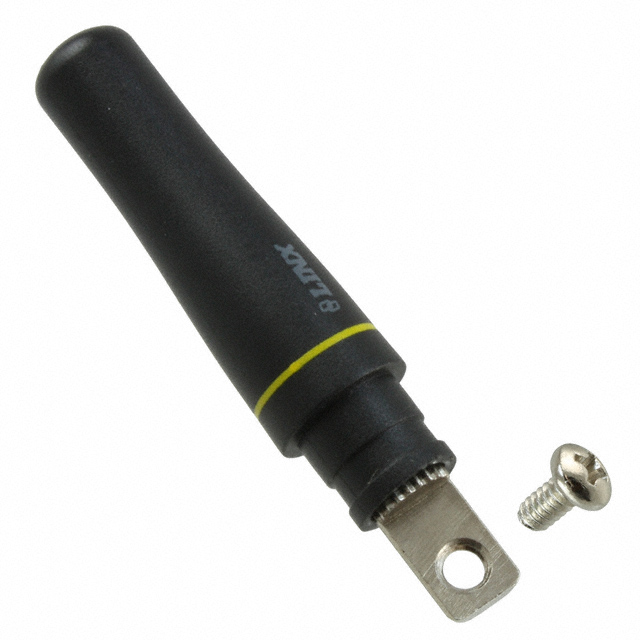

TE Connectivity AMP Connectors ANT-916-PW-LP	ISM LoRa Sensor Networks Sigfox	1.9	1 GHz	UHF	300 MHz	Panel Mount	1			Screw-Mount	General ISM	915 MHz	Whip Straight	881 MHz	951 MHz	2.4 dBi	50.5 mm	1.988 in
