TM7SM9 Series

Catalog

CBL ASSY 2.92MM JACK TO JACK 24"

Part	Style [Max]	Style [Min]	2nd Contact Gender	Operating Temperature [Min]	Operating Temperature [Max]	1st Connector Mounting Type	2nd Connector	2nd Connector Mounting Type	Overall Impedance	1st Connector	Cable Type [diameter]	Cable Type	Length [x]	Length [x]	Frequency - Max [Max]	Color	1st Contact Gender

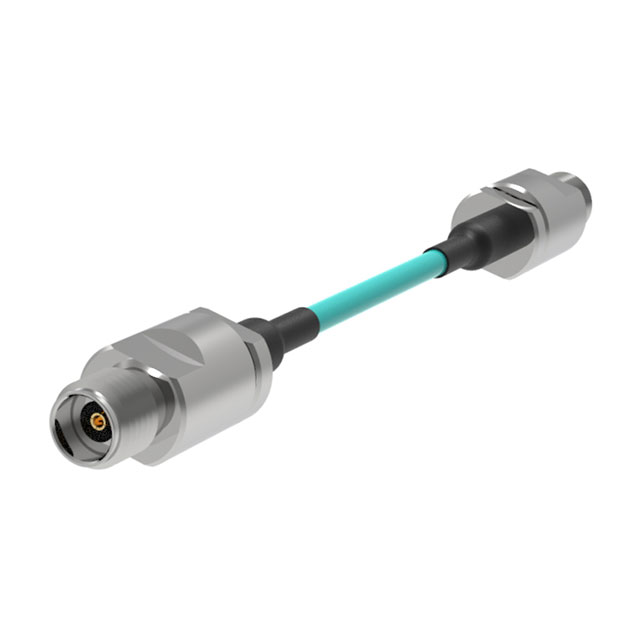

Amphenol CDI TM7SM9FS9FS061C	2.92 mm	2.92 mm	Female	-50 °C	105 ░C	Free Hanging (In-Line)	2.92 mm	Free Hanging (In-Line)	50 Ohms	2.92 mm	1.98 mm	Coaxial Cable	609.6 mm	24 in	40 GHz	Teal	Female
Amphenol CDI TM7SM9FS9FS031C	2.92 mm	2.92 mm	Female	-50 °C	105 ░C	Free Hanging (In-Line)	2.92 mm	Free Hanging (In-Line)	50 Ohms	2.92 mm	1.98 mm	Coaxial Cable	304.8 mm	12 in	40 GHz	Teal	Female

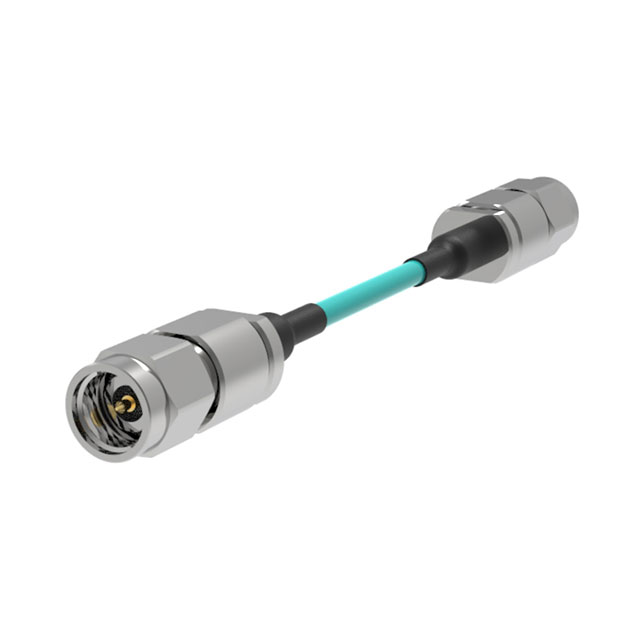

Amphenol CDI TM7SM9MS9MS031C	2.92 mm	2.92 mm	Male	-50 °C	105 ░C	Free Hanging (In-Line)	2.92 mm	Free Hanging (In-Line)	50 Ohms	2.92 mm	1.98 mm	Coaxial Cable	304.8 mm	12 in	40 GHz	Teal	Male
Amphenol CDI TM7SM9MS9FS031C	2.92 mm	2.92 mm	Female	-50 °C	105 ░C	Free Hanging (In-Line)	2.92 mm	Free Hanging (In-Line)	50 Ohms	2.92 mm	1.98 mm	Coaxial Cable	304.8 mm	12 in	40 GHz	Teal	Male
Amphenol CDI TM7SM9FS9FS061C	2.92 mm	2.92 mm	Female	-50 °C	105 ░C	Free Hanging (In-Line)	2.92 mm	Free Hanging (In-Line)	50 Ohms	2.92 mm	1.98 mm	Coaxial Cable	609.6 mm	24 in	40 GHz	Teal	Female
Amphenol CDI TM7SM9FS9FS031C	2.92 mm	2.92 mm	Female	-50 °C	105 ░C	Free Hanging (In-Line)	2.92 mm	Free Hanging (In-Line)	50 Ohms	2.92 mm	1.98 mm	Coaxial Cable	304.8 mm	12 in	40 GHz	Teal	Female
Amphenol CDI TM7SM9MS9MS031C	2.92 mm	2.92 mm	Male	-50 °C	105 ░C	Free Hanging (In-Line)	2.92 mm	Free Hanging (In-Line)	50 Ohms	2.92 mm	1.98 mm	Coaxial Cable	304.8 mm	12 in	40 GHz	Teal	Male
Amphenol CDI TM7SS9MS9MS061C	2.92 mm	2.92 mm	Male	-50 °C	105 ░C	Free Hanging (In-Line)	2.92 mm	Free Hanging (In-Line)	50 Ohms	2.92 mm	1.98 mm	Coaxial Cable	609.6 mm	24 in	40 GHz	Teal	Male
Amphenol CDI TM7SM9MS9FS031C	2.92 mm	2.92 mm	Female	-50 °C	105 ░C	Free Hanging (In-Line)	2.92 mm	Free Hanging (In-Line)	50 Ohms	2.92 mm	1.98 mm	Coaxial Cable	304.8 mm	12 in	40 GHz	Teal	Male
Amphenol CDI TM7SS9MS9MS061C	2.92 mm	2.92 mm	Male	-50 °C	105 ░C	Free Hanging (In-Line)	2.92 mm	Free Hanging (In-Line)	50 Ohms	2.92 mm	1.98 mm	Coaxial Cable	609.6 mm	24 in	40 GHz	Teal	Male
