CHG Series

Catalog

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2.54 MM, 2 ROW, 16 CONTACTS, CABLE MOUNT

Part	Pitch	Pitch	Connector Type	Number of Positions	Contact Finish	Color	Cable Termination	Wire Type	Number of Rows [custom]	Contact Type	Row Spacing	Row Spacing	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Features	Number of Rows	Wire Gauge [Max]	Wire Gauge [Min]	Wire Gauge	Fastening Type	Number of Positions [custom]
3M Electronic Specialty CHG-2016-J01010-KCP	0.1 "	2.54 mm	Receptacle	16	Gold	Gray	IDC	Discrete Ribbon Cable	2	Female Socket	2.54 mm	0.1 "	30 Áin	0.76 Ám	Free Hanging (In-Line)
3M Electronic Specialty CHG-2006-001010-KCP	0.1 "	2.54 mm	Receptacle	6	Gold	Gray	IDC	Discrete Ribbon Cable	2	Female Socket	2.54 mm	0.1 "	30 Áin	0.76 Ám	Free Hanging (In-Line)	Closed End

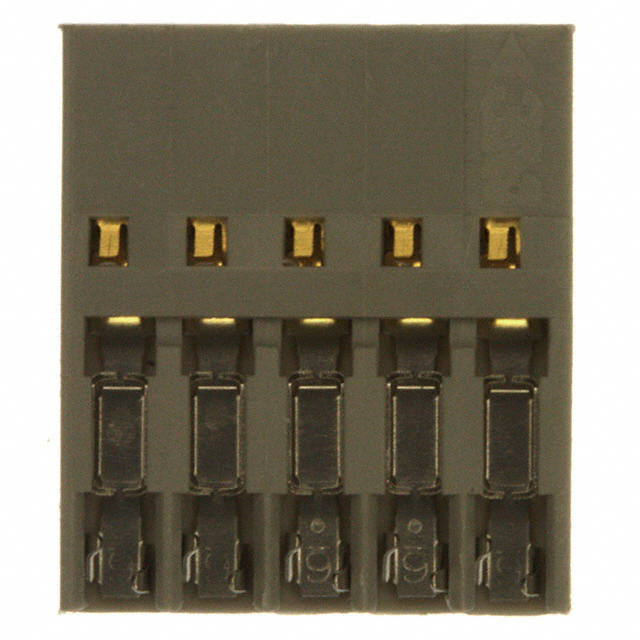

3M Electronic Specialty CHG-1005-001010-KCP	0.1 "	2.54 mm	Receptacle	5	Gold	Gray	IDC	Discrete Ribbon Cable		Female Socket			30 Áin	0.76 Ám	Free Hanging (In-Line)	Closed End	1

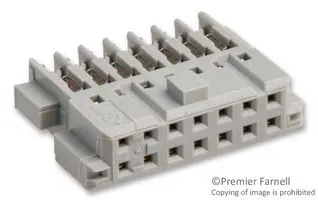

3M Electronic Specialty CHG-2014-J01010-KEP	0.1 "	2.54 mm	Receptacle	14	Gold	Gray	IDC	Discrete Ribbon Cable	2	Female Socket	2.54 mm	0.1 "	30 Áin	0.76 Ám	Free Hanging (In-Line)			24 AWG	22 AWG	22 AWG Stranded 24 AWG Solid or Stranded	Push-Pull
3M Electronic Specialty CHG-2010-001010-KCP	0.1 "	2.54 mm	Receptacle	10	Gold	Gray	IDC	Discrete Ribbon Cable	2	Female Socket	2.54 mm	0.1 "	30 Áin	0.76 Ám	Free Hanging (In-Line)	Closed End
3M Electronic Specialty CHG-2006-001010-KEP	0.1 "	2.54 mm	Receptacle	6	Gold	Gray	IDC	Discrete Ribbon Cable	2	Female Socket	2.54 mm	0.1 "	30 Áin	0.76 Ám	Free Hanging (In-Line)	Closed End		24 AWG	22 AWG
3M Electronic Specialty CHG-1025-001010-KEP	0.1 "	2.54 mm	Receptacle	25	Gold	Gray	IDC	Discrete Ribbon Cable		Female Socket			30 Áin	0.76 Ám	Free Hanging (In-Line)	Closed End	1	24 AWG	22 AWG	22 AWG Stranded 24 AWG Solid or Stranded	Push-Pull
3M Electronic Specialty CHG-2034-001010-KEP	0.1 "	2.54 mm	Receptacle		Gold	Gray	IDC	Discrete Ribbon Cable	2	Female Socket	2.54 mm	0.1 "	30 Áin	0.76 Ám	Free Hanging (In-Line)	Closed End		24 AWG	22 AWG			34
3M Electronic Specialty CHG-2020-001010-KCP	0.1 "	2.54 mm	Receptacle	20	Gold	Gray	IDC	Discrete Ribbon Cable	2	Female Socket	2.54 mm	0.1 "	30 Áin	0.76 Ám	Free Hanging (In-Line)	Closed End
3M Electronic Specialty CHG-2014-001010-KEP	0.1 "	2.54 mm	Receptacle	14	Gold	Gray	IDC	Discrete Ribbon Cable	2	Female Socket	2.54 mm	0.1 "	30 Áin	0.76 Ám	Free Hanging (In-Line)	Closed End		24 AWG	22 AWG
