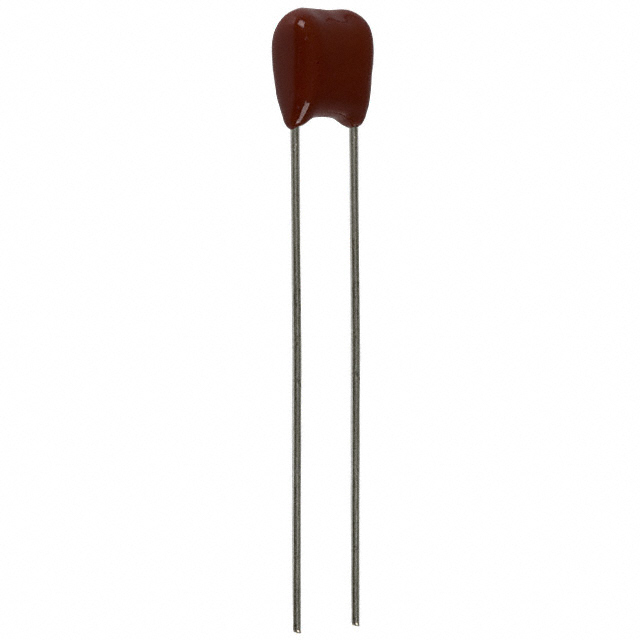

ECQ-E2273 Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP FILM 0.027UF 10% 250VDC RAD

Part	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Capacitance	Voltage Rating - DC	Applications	Package / Case	Lead Spacing	Lead Spacing	Dielectric Material	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Panasonic Electronic Components ECQ-E2273KS	Through Hole	9 mm	0.354 in	PC Pins	85 °C	-40 C	0.197 "	12.5 mm	5 mm	0.492 "	0.027 µF	250 V	General Purpose	Radial	0.394 in	10 mm	Polyester Metallized	10 %
Panasonic Electronic Components ECQ-E2273RKF	Through Hole	0.492 in		PC Pins	105 ░C	-40 C	0.173 in	10.3 mm	4.4 mm	0.406 in	0.027 µF	250 V	General Purpose	Radial	0.295 in	7.5 mm	Polyester Metallized	10 %	12.5 mm
Panasonic Electronic Components ECQ-E2273KFW	Through Hole	0.492 in		PC Pins	105 ░C	-40 C	0.173 in	10.3 mm	4.4 mm	0.406 in	0.027 µF	250 V	General Purpose	Radial	0.295 in	7.5 mm	Polyester Metallized	10 %	12.5 mm
Panasonic Electronic Components ECQ-E2273KBB	Through Hole		0.48 in	PC Pins	105 ░C	-40 C	0.169 "	7.9 mm	4.3 mm	0.311 in	0.027 µF	250 V	General Purpose	Radial	0.197 "	5 mm	Polyester Metallized	10 %		12.2 mm
Panasonic Electronic Components ECQ-E2273JB	Through Hole			PC Pins	105 ░C	-40 C	0.169 "	7.9 mm	4.3 mm	0.311 in	0.027 µF	250 V	General Purpose	Radial	0.197 "	5 mm	Polyester Metallized	5 %			0.323 in	8.2 mm
Panasonic Electronic Components ECQ-E2273RJF	Through Hole	0.492 in		PC Pins	105 ░C	-40 C	0.173 in	10.3 mm	4.4 mm	0.406 in	0.027 µF 27 mF	250 V	General Purpose	Radial	0.295 in	7.5 mm	Polyester Metallized	5 % 5 %	12.5 mm
Panasonic Electronic Components ECQ-E2273KFB	Through Hole	0.492 in		PC Pins	105 ░C	-40 C	0.173 in	10.3 mm	4.4 mm	0.406 in	0.027 µF	250 V	General Purpose	Radial	0.295 in	7.5 mm	Polyester Metallized	10 %	12.5 mm
Panasonic Electronic Components ECQ-E2273JFB	Through Hole	0.492 in		PC Pins	105 ░C	-40 C	0.173 in	10.3 mm	4.4 mm	0.406 in	0.027 µF	250 V	General Purpose	Radial	0.295 in	7.5 mm	Polyester Metallized	5 %	12.5 mm
