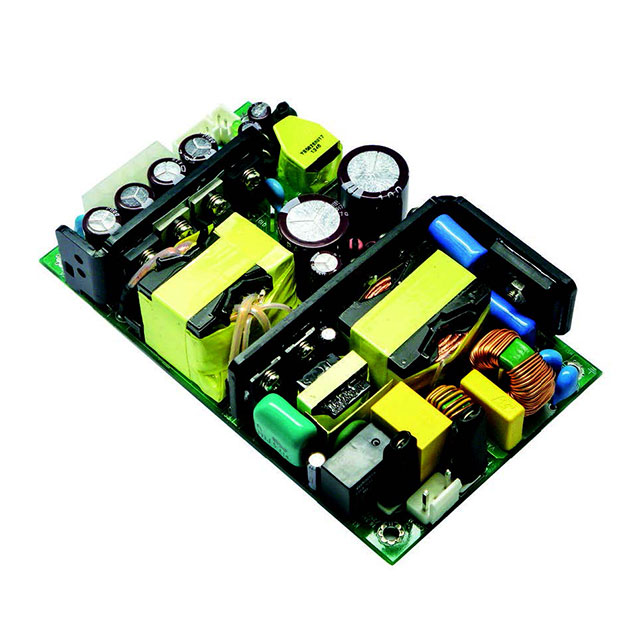

CSS280 Series
Manufacturer: TDK Corporation
Beta
⌘K
AC/DC OPEN FRAME POWER SUPPLY (PSU), ITE & MEDICAL, 1 OUTPUT, 280W @ 18CFM, 210 W
| Part | Type | Power (Watts) | Voltage - Isolation | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency | Voltage - Output 1 | Voltage - Input [Max] | Voltage - Input [Min] | Number of Outputs | Features | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Applications | Approval Agency | Current - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | Open Frame | 210 W | 4000 V | Chassis Mount | 70 °C | 0 °C | 91 % | 28 V | 264 VAC | 90 VAC | 1 | PFC Remote On/Off Remote Sense Standby Output Universal Input | 30 mm | 3 " | 127 mm | 5 " | 76.2 mm | 1.18 in | ITE (Commercial) Medical | CE | |
TDK Corporation | Open Frame | 210 W | 4000 V | Chassis Mount | 70 °C | 0 °C | 91 % | 48 V | 264 VAC | 90 VAC | 1 | PFC Remote On/Off Remote Sense Standby Output Universal Input | 30 mm | 3 " | 127 mm | 5 " | 76.2 mm | 1.18 in | ITE (Commercial) Medical | CE | 4.375 A |
 TDK Corporation | Open Frame | 210 W | 4000 V | Chassis Mount | 70 °C | 0 °C | 91 % | 54 V | 264 VAC | 90 VAC | 1 | PFC Remote On/Off Remote Sense Standby Output Universal Input | 30 mm | 3 " | 127 mm | 5 " | 76.2 mm | 1.18 in | ITE (Commercial) Medical | CE | 3.88 A |
 TDK Corporation | Open Frame | 210 W | 4000 V | Chassis Mount | 70 °C | 0 °C | 91 % | 12 V | 264 VAC | 90 VAC | 1 | PFC Remote On/Off Remote Sense Standby Output Universal Input | 30 mm | 3 " | 127 mm | 5 " | 76.2 mm | 1.18 in | ITE (Commercial) Medical | CE | 17.5 A |
TDK Corporation | Open Frame | 210 W | 4000 V | Chassis Mount | 70 °C | 0 °C | 91 % | 24 V | 264 VAC | 90 VAC | 1 | PFC Remote On/Off Remote Sense Standby Output Universal Input | 30 mm | 3 " | 127 mm | 5 " | 76.2 mm | 1.18 in | ITE (Commercial) Medical | CE | 8.75 A |
 TDK Corporation | Open Frame | 280 W | 4000 V | Chassis Mount | 70 °C | 0 °C | 91 % | 24 V | 264 VAC | 90 VAC | 1 | PFC Remote On/Off Remote Sense Standby Output Universal Input | 30 mm | 3 " | 127 mm | 5 " | 76.2 mm | 1.18 in | ITE (Commercial) Medical | CE | 8.75 A |
TDK Corporation | Open Frame | 280 W | 4000 V | Chassis Mount | 70 °C | 0 °C | 91 % | 28 V | 264 VAC | 90 VAC | 1 | PFC Remote On/Off Remote Sense Standby Output Universal Input | 30 mm | 3 " | 127 mm | 5 " | 76.2 mm | 1.18 in | ITE (Commercial) Medical | CE | |
 TDK Corporation | Open Frame | 280 W | 4000 V | Chassis Mount | 70 °C | 0 °C | 91 % | 12 V | 264 VAC | 90 VAC | 1 | PFC Remote On/Off Remote Sense Standby Output Universal Input | 30 mm | 3 " | 127 mm | 5 " | 76.2 mm | 1.18 in | ITE (Commercial) Medical | CE | 17.5 A |
