T940N18 Series
Manufacturer: INFINEON
Beta
⌘K

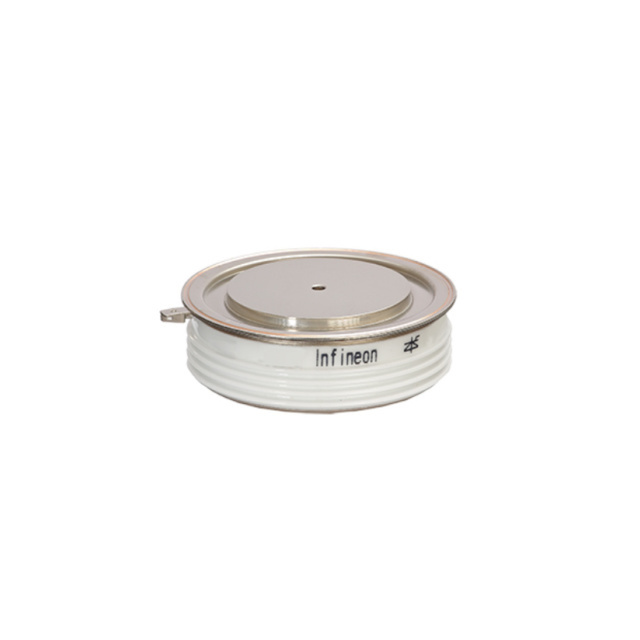

1800 V ELECTRICAL TRIGGERED PHASE CONTROL THYRISTOR DISC ASSEMBLED IN A HERMETIC SEALED CERAMIC HOUSING WITH A 58 MM DIA AND A HEIGHT OF 14 MM
| Part | Structure | Current - Gate Trigger (Igt) (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Voltage - Off State | Current - On State (It (RMS)) (Max) [Max] | Current - Non Rep. Surge 50, 60Hz (Itsm) | Number of SCRs, Diodes | Current - Hold (Ih) (Max) [Max] | Current - On State (It (AV)) (Max) | Package / Case | Voltage - Gate Trigger (Vgt) (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | Single | 250 mA | 125 °C | -40 C | Clamp On | 1.8 kV | 1759 A | 17500 A | 1 SCR | 300 mA | 959 A | B-PUK DO-200AB | 2.2 V |
