499-83 Series

Manufacturer: Preci-Dip

Catalog

CONN SOCKET 38P 0.1 GOLD PCB R/A

Part	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Material	Contact Finish - Mating	Current Rating (Amps)	Insulation Color	Number of Positions Loaded	Mounting Type	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Number of Rows [custom]	Termination	Contact Shape	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Fastening Type	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Type	Insulation Height [z]	Insulation Height [z]	Contact Finish - Post
Preci-Dip 499-83-238-10-003101	0.126 "	3.2 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	Socket	Beryllium Copper	Gold	3 A	Black	All	Right Angle Through Hole	29.5 µin	0.75 µm	2	Solder	Circular	UL94 V-0	0.1 "	2.54 mm	Push-Pull	38	0.1 in	2.54 mm	Female Socket	0.2 in	5.08 mm	Tin
Preci-Dip 499-83-218-10-003101	0.126 "	3.2 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	Socket	Beryllium Copper	Gold	3 A	Black	All	Right Angle Through Hole	29.5 µin	0.75 µm	2	Solder	Circular	UL94 V-0	0.1 "	2.54 mm	Push-Pull	18	0.1 in	2.54 mm	Female Socket	0.2 in	5.08 mm	Tin
Preci-Dip 499-83-254-10-003101	0.126 "	3.2 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	Socket	Beryllium Copper	Gold	3 A	Black	All	Right Angle Through Hole	29.5 µin	0.75 µm	2	Solder	Circular	UL94 V-0	0.1 "	2.54 mm	Push-Pull	54	0.1 in	2.54 mm	Female Socket	0.2 in	5.08 mm	Tin
Preci-Dip 499-83-258-10-003101	0.126 "	3.2 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	Socket	Beryllium Copper	Gold	3 A	Black	All	Right Angle Through Hole	29.5 µin	0.75 µm	2	Solder	Circular	UL94 V-0	0.1 "	2.54 mm	Push-Pull	58	0.1 in	2.54 mm	Female Socket	0.2 in	5.08 mm	Tin
Preci-Dip 499-83-224-10-003101	0.126 "	3.2 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	Socket	Beryllium Copper	Gold	3 A	Black	All	Right Angle Through Hole	29.5 µin	0.75 µm	2	Solder	Circular	UL94 V-0	0.1 "	2.54 mm	Push-Pull	24	0.1 in	2.54 mm	Female Socket	0.2 in	5.08 mm	Tin

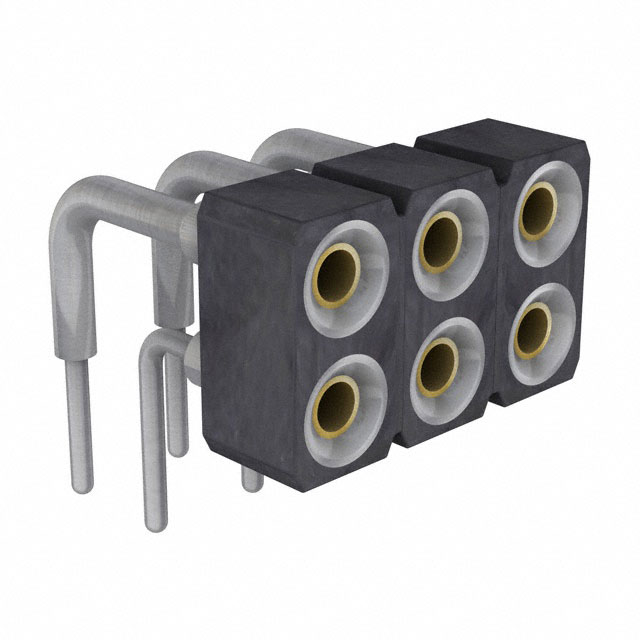

Preci-Dip 499-83-206-10-003101	0.126 "	3.2 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	Socket	Beryllium Copper	Gold	3 A	Black	All	Right Angle Through Hole	29.5 µin	0.75 µm	2	Solder	Circular	UL94 V-0	0.1 "	2.54 mm	Push-Pull	6	0.1 in	2.54 mm	Female Socket	0.2 in	5.08 mm	Tin
Preci-Dip 499-83-270-10-003101	0.126 "	3.2 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	Socket	Beryllium Copper	Gold	3 A	Black	All	Right Angle Through Hole	29.5 µin	0.75 µm	2	Solder	Circular	UL94 V-0	0.1 "	2.54 mm	Push-Pull	70	0.1 in	2.54 mm	Female Socket	0.2 in	5.08 mm	Tin
Preci-Dip 499-83-220-10-003101	0.126 "	3.2 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	Socket	Beryllium Copper	Gold	3 A	Black	All	Right Angle Through Hole	29.5 µin	0.75 µm	2	Solder	Circular	UL94 V-0	0.1 "	2.54 mm	Push-Pull	20	0.1 in	2.54 mm	Female Socket	0.2 in	5.08 mm	Tin
Preci-Dip 499-83-260-10-003101	0.126 "	3.2 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	Socket	Beryllium Copper	Gold	3 A	Black	All	Right Angle Through Hole	29.5 µin	0.75 µm	2	Solder	Circular	UL94 V-0	0.1 "	2.54 mm	Push-Pull	60	0.1 in	2.54 mm	Female Socket	0.2 in	5.08 mm	Tin
Preci-Dip 499-83-256-10-003101	0.126 "	3.2 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	Socket	Beryllium Copper	Gold	3 A	Black	All	Right Angle Through Hole	29.5 µin	0.75 µm	2	Solder	Circular	UL94 V-0	0.1 "	2.54 mm	Push-Pull	56	0.1 in	2.54 mm	Female Socket	0.2 in	5.08 mm	Tin
