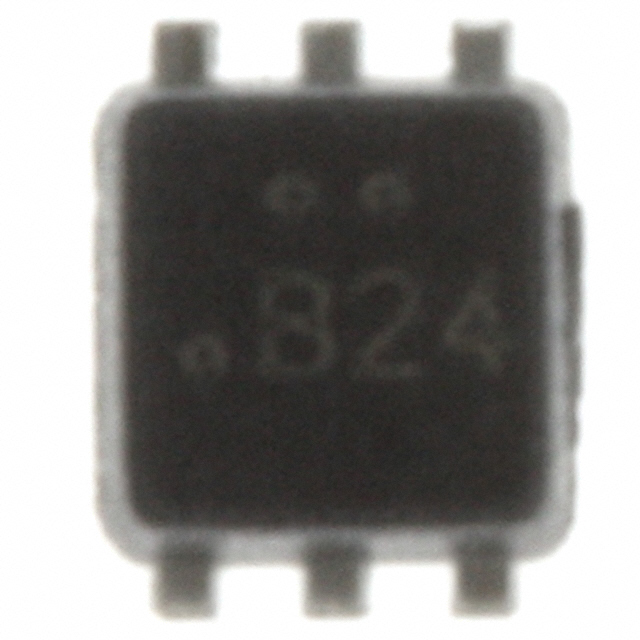

FDJ128 Series
Manufacturer: ON Semiconductor
Beta
⌘K
MOSFET N-CH 20V 5.5A SC75-6 FLMP
| Part | Drain to Source Voltage (Vdss) | Drive Voltage (Max Rds On, Min Rds On) | Supplier Device Package | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds [Max] | Technology | Current - Continuous Drain (Id) @ 25°C | Mounting Type | FET Type | Vgs (Max) | Vgs(th) (Max) @ Id | Rds On (Max) @ Id, Vgs | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ON Semiconductor | 20 V | 2.5 V 4.5 V | SC75-6 FLMP | 8 nC | 543 pF | MOSFET (Metal Oxide) | 5.5 A | Surface Mount | N-Channel | 12 V | 1.5 V | 35 mOhm | -55 °C | 150 °C |
