OA109AP Series

Catalog

AC FAN, BALL, 120MM, 3100RPM, 230V ROHS COMPLIANT: YES

Part	Lifetime @ Temp.	Air Flow	Air Flow	Material - Frame	Material - Blade	Voltage Range [Min]	Voltage Range [Max]	Bearing Type	Static Pressure	Static Pressure	Termination	RPM	Fan Type	Features	Voltage - Rated	Power (Watts)	Noise	Width [y]	Weight [custom]	Weight [custom]	Size / Dimension [y]	Size / Dimension [x]	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Termination	Voltage - Rated [Max]	Voltage - Rated [Min]	Ingress Protection	Weight	Weight
ORION FANS OA109AP-22-1TBR	40 °C 60000 Hrs	2.77 m³/min	99 CFM	Aluminum	Polybutylene Terephthalate (PBT)	160 VAC	260 VAC	Ball	0.33 in H2O	82.2 Pa	2	3100 RPM	Tubeaxial	Reverse Air Flow	230 VAC	15 W	47 dB	38.5 mm	544.3 g	1.2 lbs	119.5 mm	119.5 mm	cURus TUV	80 °C	-20 ░C

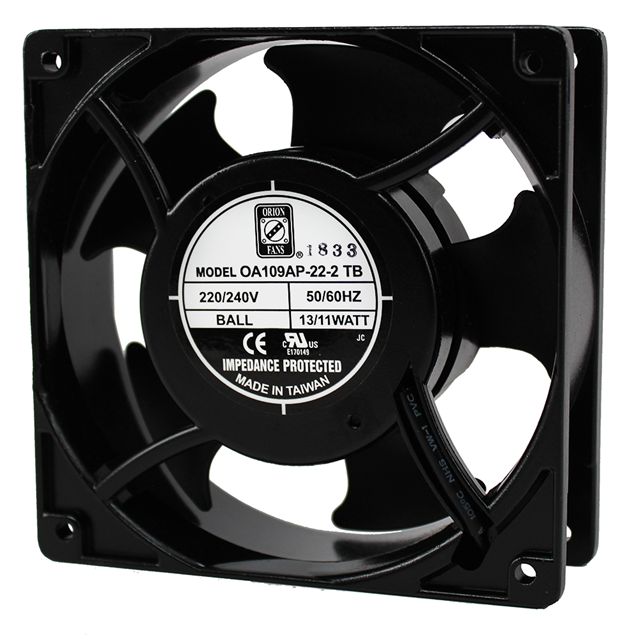

ORION FANS OA109AP-22-2TB	70000 Hrs	1.99 mł/min	71 CFM	Aluminum	Polybutylene Terephthalate (PBT)	160 VAC	260 VAC	Ball	0.21 in H2O	52.3 Pa	2	2300 RPM	Tubeaxial		230 VAC	11 W	35 dB	38.5 mm	544.3 g	1.2 lbs		120 mm	CE cURus TUV UR	167 °F	-4 °F	120 mm

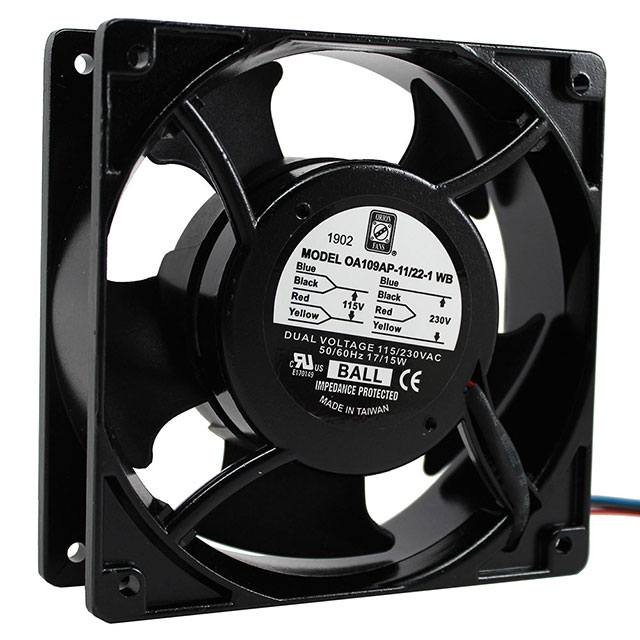

ORION FANS OA109AP-11/22-1WB	40 °C 60000 Hrs	3.08 m³/min	110 CFM			100 VAC	240 VAC	Ball	0.28 in H2O	69.7 Pa		3000 RPM	Tubeaxial	Dual Voltage		15 W	42 dB	38 mm				120 mm	cURus TUV	80 °C	-20 ░C	120 mm	4 Wire Leads	230 VAC	115 VAC
ORION FANS OA109AP-22-1WB	70000 Hrs	3.08 m³/min	110 CFM	Aluminum	Polybutylene Terephthalate (PBT)	160 VAC	260 VAC	Ball	0.28 in H2O	69.7 Pa		3000 RPM	Tubeaxial		230 VAC	15 W	42 dB	38.5 mm	544.3 g	1.2 lbs		120 mm	CE cURus TUV UR	167 °F	-4 °F	120 mm	2 Wire Leads
ORION FANS OA109AP-22-1WB1855	50000 Hrs	2.94 m³/min	105 CFM	Aluminum	Metal			Ball	0.22 in H2O	54.8 Pa		3100 RPM	Tubeaxial		230 VAC	10 W	48 dB	38.5 mm	589.7 g	1.3 lbs	119.5 mm	119.5 mm	cURus TUV				2 Wire Leads			IP55 - Dust Protected Water Resistant
ORION FANS OA109AP-11-1TBSF	40000 Hrs	2.97 m³/min	106 CFM	Aluminum	Polybutylene Terephthalate (PBT)			Ball	0.32 in H2O	79.7 Pa	2	3100 RPM	Tubeaxial	Salt Fog Rated	115 VAC	12 W	46 dB(A)	38.5 mm				120 mm		70 °C	-20 ░C	120 mm					499 g	1.1 lbs
ORION FANS OA109AP-11-1TS	30000 Hrs	3.08 m³/min	110 CFM	Aluminum	Polybutylene Terephthalate (PBT)			Sleeve	0.28 in H2O	69.7 Pa	2	3000 RPM	Tubeaxial		115 VAC	15 W	42 dB	38.5 mm	544.3 g	1.2 lbs		120 mm	CE cURus TUV UR	45 °C	-10 °C	120 mm

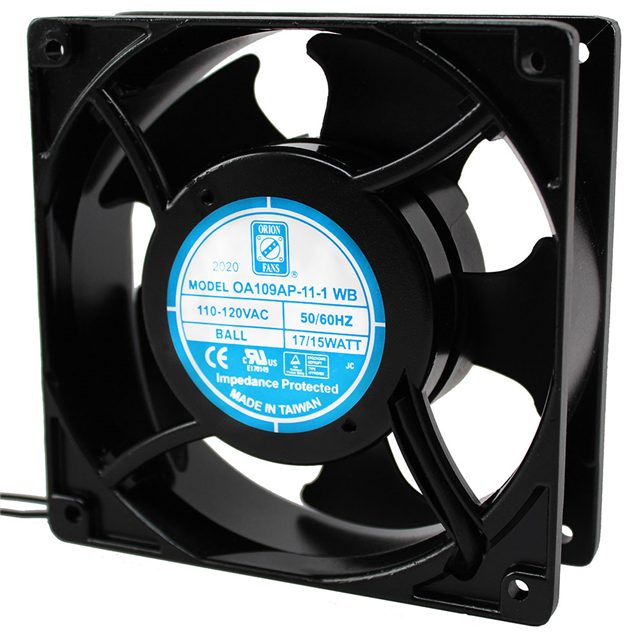

ORION FANS OA109AP-11-1WB	70000 Hrs	3.08 m³/min	110 CFM	Aluminum	Polybutylene Terephthalate (PBT)			Ball	0.28 in H2O	69.7 Pa		3000 RPM	Tubeaxial		115 VAC	15 W	42 dB	38.5 mm	544.3 g	1.2 lbs		120 mm	CE cURus TUV UR	167 °F	-4 °F	120 mm	2 Wire Leads
ORION FANS OA109AP-22-2TB1855	40 °C 50000 Hrs	2.38 m³/min	85 CFM	Aluminum	Metal			Ball	0.12 in H2O	30 Pa	2	2500 RPM	Tubeaxial		230 VAC	13 W	43 dB	38.5 mm	589.7 g	1.3 lbs	119.5 mm	119.5 mm	cURus TUV							IP55 - Dust Protected Water Resistant
ORION FANS OA109AP-11/22-3WB	40 °C 60000 Hrs	1.43 mł/min	51 CFM			100 VAC	240 VAC	Ball				1600 RPM	Tubeaxial	Dual Voltage		8 W	25 dB(A)	38 mm				120 mm	cURus TUV	80 °C	-20 ░C	120 mm	4 Wire Leads	230 VAC	115 VAC
