ADP7104 Series

20 V, 500mA, Low Noise, CMOS LDO

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

20 V, 500mA, Low Noise, CMOS LDO

Part	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Output (Min/Fixed)	Control Features	Current - Quiescent (Iq)	Current - Output	Package Length	Package Name	Package Features	Package Width	Mounting Type	Protection Features	Output Type	Current - Supply (Max)	Voltage - Input (Max)	Output Configuration	Number of Regulators	Voltage Dropout (Max)	Supplied Contents	Board Type	Contents	Regulator Type	Utilized IC / Part	Channels per IC (Single)	Channels per IC (Type)	Channels per IC (Count)	Voltage - Output	Voltage - Input (Minimum)	Voltage - Input (Maximum)	Package / Case	PSRR (Minimum)	PSRR (Maximum)	Voltage - Output (Max)	Voltage - Output (Min)
Analog Devices Inc./Maxim Integrated ADP7104ARDZ-9.0-R7	125 °C	-40 °C	9 V	Enable Power Good Under Voltage Lockout	900 µA	500 mA	0.154 in	8-SOIC 8-SOIC-EP	Exposed Pad	3.9 mm	Surface Mount	Over Temperature Short Circuit	Fixed	1.6 mA	20 V	Positive	1	0.55 V
Analog Devices Inc./Maxim Integrated ADP7104ARDZ-1.5-R7	125 °C	-40 °C	1.5 V	Enable Power Good Under Voltage Lockout	900 µA	500 mA	0.154 in	8-SOIC 8-SOIC-EP	Exposed Pad	3.9 mm	Surface Mount	Over Temperature Short Circuit	Fixed	1.6 mA	20 V	Positive	1

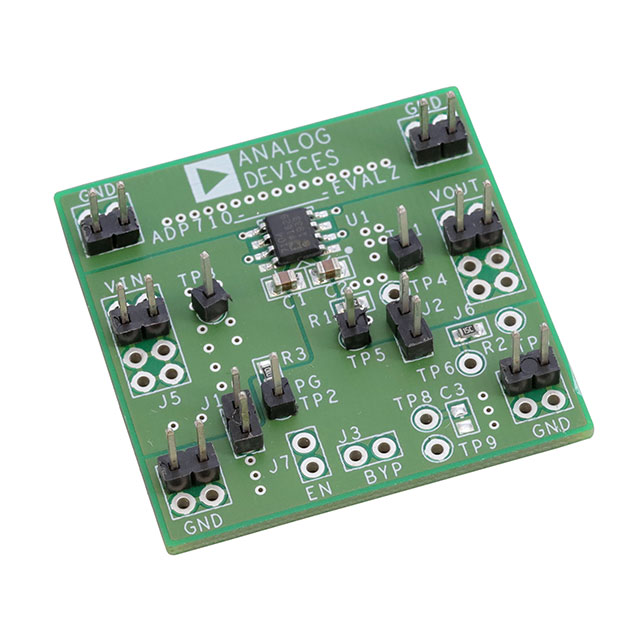

Analog Devices Inc./Maxim Integrated ADP7104RD-EVALZ						500 mA													Board(s)	Fully Populated	Board	Positive Fixed	ADP7104	1	Single	1	3.3 V	3.3 V	20 V
Analog Devices Inc./Maxim Integrated ADP7104ACPZ-1.5-R7	125 °C	-40 °C	1.5 V	Enable Power Good Under Voltage Lockout	900 µA	500 mA	3 mm	8-LFCSP-WD		3 mm	Surface Mount	Over Temperature Short Circuit	Fixed	1.6 mA	20 V	Positive	1													8-WFDFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated ADP7104CP-EVALZ						500 mA													Board(s)	Fully Populated	Board	Positive Fixed	ADP7104	1	Single	1	3.3 V	3.3 V	20 V
Analog Devices Inc./Maxim Integrated ADP7104ACPZ-R7	125 °C	-40 °C	1.22 V	Enable Power Good Under Voltage Lockout	900 µA	500 mA	3 mm	8-LFCSP-WD		3 mm	Surface Mount	Over Temperature Short Circuit	Adjustable	1.6 mA	20 V	Positive	1	0.55 V												8-WFDFN Exposed Pad CSP	50 dB	80 dB	19.45 V
Analog Devices Inc./Maxim Integrated ADP7104ARDZ-1.8-R7	125 °C	-40 °C	1.8 V	Enable Power Good Under Voltage Lockout	900 µA	500 mA	0.154 in	8-SOIC 8-SOIC-EP	Exposed Pad	3.9 mm	Surface Mount	Over Temperature Short Circuit	Fixed	1.6 mA	20 V	Positive	1
Analog Devices Inc./Maxim Integrated ADP7104CPZ-REDYKIT						500 mA													Board(s)	Fully Populated	Board	Positive Adjustable	ADP7104	1	Single	1		3.3 V	20 V				19.45 V	1.22 V
Analog Devices Inc./Maxim Integrated ADP7104ARDZ-3.3-R7	125 °C	-40 °C	3.3 V	Enable Power Good Under Voltage Lockout	900 µA	500 mA	0.154 in	8-SOIC 8-SOIC-EP	Exposed Pad	3.9 mm	Surface Mount	Over Temperature Short Circuit	Fixed	1.6 mA	20 V	Positive	1	0.55 V													50 dB	60 dB
Analog Devices Inc./Maxim Integrated ADP7104ACPZ-1.8-R7	125 °C	-40 °C	1.8 V	Enable Power Good Under Voltage Lockout	900 µA	500 mA	3 mm	8-LFCSP-WD		3 mm	Surface Mount	Over Temperature Short Circuit	Fixed	1.6 mA	20 V	Positive	1													8-WFDFN Exposed Pad CSP

Catalog

20 V, 500mA, Low Noise, CMOS LDO

Description

The ADP7104 is a CMOS, low dropout linear regulator that operates from 3.3 V to 20 V and provides up to 500 mA of output current. This high input voltage LDO is ideal for regulation of high performance analog and mixed signal circuits operating from 19 V to 1.22 V rails. Using an advanced proprietary architecture, it provides high power supply rejection, low noise, and achieves excellent line and load transient response with just a small 1 μF ceramic output capacitor.The ADP7104 is available in seven fixed output voltage options and an adjustable version, which allows output voltages that range from 1.22 V to VIN− VDOvia an external feedback divider.The ADP7104 output noise voltage is 15 μV rms and is independent of the output voltage. A digital power-good output allows power system monitors to check the health of the output voltage. A user programmable precision undervoltage lockout function facilitates sequencing of multiple power supplies.The ADP7104 is available in 8-lead, 3 mm × 3 mm LFCSP and 8-lead SOIC packages. The LFCSP offers a very compact solution and also provides excellent thermal performance for applications requiring up to 500 mA of output current in a small, low-profile footprint.APPLICATIONSRegulation to noise sensitive applications: ADC, DAC circuits, precision amplifiers, high frequency oscillators, clocks, and PLLsCommunications and infrastructureMedical and healthcareIndustrial and instrumentation
