ANT-2.4-FPC-SAH Series

Catalog

ANTENNA 2.4 FPC SH 12X8 150 UFL

Part	Termination	Termination	Power - Max [Max]	Frequency Range [Max]	Frequency Range [Min]	Antenna Type	Applications	Features	Mounting Type	Number of Bands	VSWR	Gain	Height (Max) [z]	Height (Max) [z]	Features
TE Connectivity AMP Connectors ANT-2.4-FPC-SAH150UF	I-PEX MHF1 IPEX MHF1	U.FL	2 W	2.5 GHz	2.4 GHz	PCB Trace	Bluetooth ISM Wi-Fi Zigbee™	Cable - 150mm	Adhesive	1	4.1	0.1 dBi	0.004 in	0.1 mm

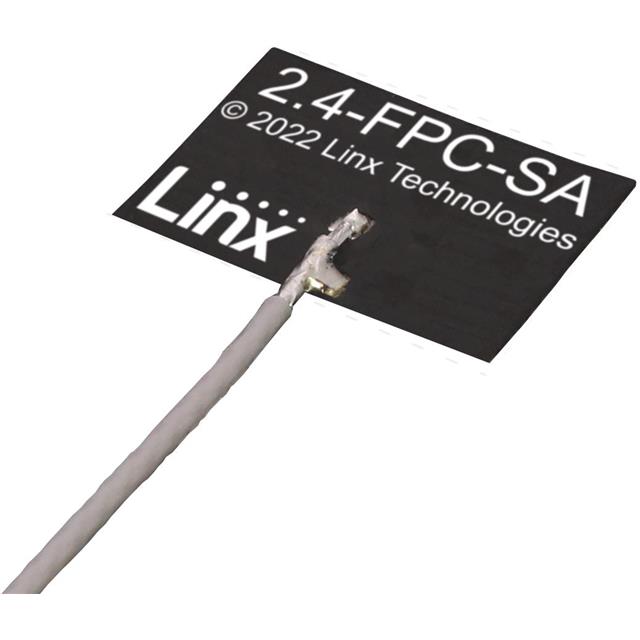

TE Connectivity AMP Connectors ANT-2.4-FPC-SAH100M4	MHF4		2 W	2.5 GHz	2.4 GHz	PCB Trace	Bluetooth ISM Wi-Fi Zigbee™	Cable	Adhesive	1	4.1	0.1 dBi	0.004 in	0.1 mm	100 mm
TE Connectivity AMP Connectors ANT-2.4-FPC-SAH50UF	I-PEX MHF1 IPEX MHF1	U.FL	2 W	2.5 GHz	2.4 GHz	PCB Trace	Bluetooth ISM Wi-Fi Zigbee™	Cable - 50mm	Adhesive	1	4.1	0.1 dBi	0.004 in	0.1 mm
TE Connectivity AMP Connectors ANT-2.4-FPC-SAH150M4	MHF4		2 W	2.5 GHz	2.4 GHz	PCB Trace	Bluetooth ISM Wi-Fi Zigbee™	Cable - 150mm	Adhesive	1	4.1	0.1 dBi	0.004 in	0.1 mm
TE Connectivity AMP Connectors ANT-2.4-FPC-SAH50M4	MHF4		2 W	2.5 GHz	2.4 GHz	PCB Trace	Bluetooth ISM Wi-Fi Zigbee™	Cable - 50mm	Adhesive	1	4.1	0.1 dBi	0.004 in	0.1 mm
TE Connectivity AMP Connectors ANT-2.4-FPC-SAH100UF	I-PEX MHF1 IPEX MHF1	U.FL	2 W	2.5 GHz	2.4 GHz	PCB Trace	Bluetooth ISM Wi-Fi Zigbee™	Cable	Adhesive	1	4.1	0.1 dBi	0.004 in	0.1 mm	100 mm
