NFAQ0860L33T Series

Intelligent Power Module (IPM), 600 V, 8 A, Short lead

Catalog

Intelligent Power Module (IPM), 600 V, 8 A, Short lead

Part	Mounting Type	Configuration	Voltage	Type	Package / Case	Package / Case	Package / Case	Package / Case	Voltage - Isolation	Current

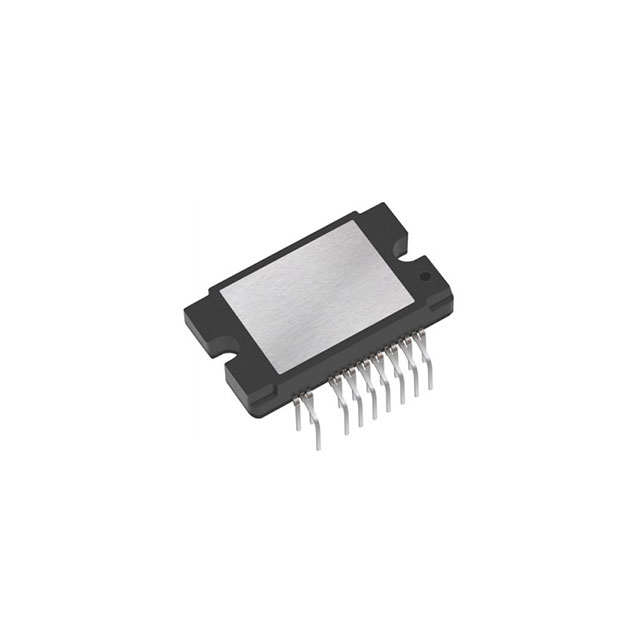

ON Semiconductor NFAQ0860L36T	Through Hole	3 Phase Inverter	600 V	IGBT	24 mm	0.61 "	38-PowerDIP Module	24 Leads	2000 Vrms	8 A
ON Semiconductor NFAQ0860L33T	Through Hole	3 Phase Inverter	600 V	IGBT	24 mm	0.61 "	38-PowerDIP Module	24 Leads	2000 Vrms	8 A

Catalog

Intelligent Power Module (IPM), 600 V, 8 A, Short lead

Key Features

• Three-phase 8A / 600 V IGBT module with integrated drivers using DBC substrate for lower thermal resistance

• Typical values: VCE(sat) = 2.4V, VF = 2.1V, ESW = 280 µJ at 8 A

• Compact 29.6 mm x 18.2 mm dual in-line package

• Cross-conduction protection

• Adjustable over-current protection level

• Integrated bootstrap diodes and resistors

• Enable pin

• Thermistor

• Short lead length (3.4mm, module bottom to pin end)

Description

The NFAQ0860L33T is a fully-integrated inverter power stage consisting of a high-voltage driver, six IGBT’s and a thermistor, suitable for driving permanent magnet synchronous (PMSM) motors, brushless-DC (BLDC) motors and AC asynchronous motors. The IGBT’s are configured in a 3-phase bridge with separate emitter connections for the lower legs for maximum flexibility in the choice of control algorithm.The power stage has a full range of protection functions including cross-conduction protection, external shutdown and under-voltage lockout functions. An internal comparator and reference connected to the over-current protection circuit allows the designer to set the over-current protection level.
