Power Inductors - SMD 0.2uH 90A 0.426mOhms
Power Inductors - SMD 0.2uH 90A 0.426mOhms
| Part | Current Rating (Amps) | Mounting Type | Current - Saturation (Isat) | DC Resistance (DCR) | Type | Tolerance | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Inductance Frequency - Test | Shielding | Material - Core |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

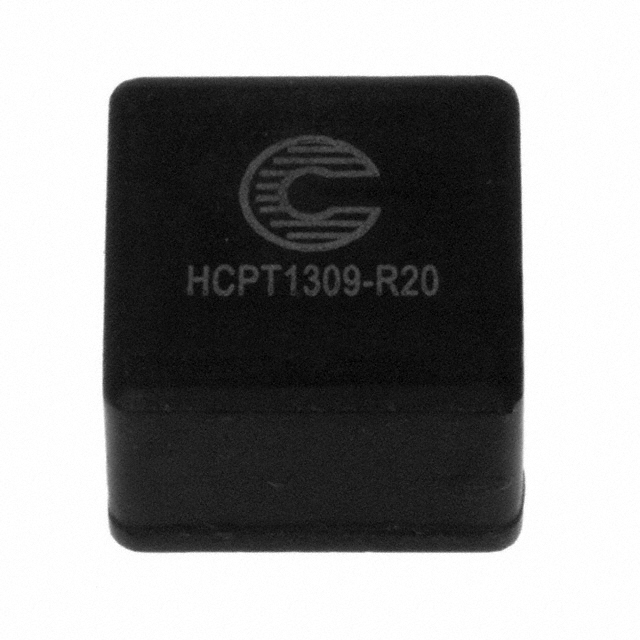

 Eaton - Electronics Division | 43.1 A | Through Hole | 90 A | 0.426 mOhm | Drum Core Wirewound | 20 % | 0.48 in | 14 mm | 0.551 in | 12.2 mm | 9 mm | 0.354 in | -40 C | 105 ░C | Radial Horizontal | 100 kHz | Unshielded | Iron Powder |
