A 40-LC Series
Manufacturer: Assmann WSW Components
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

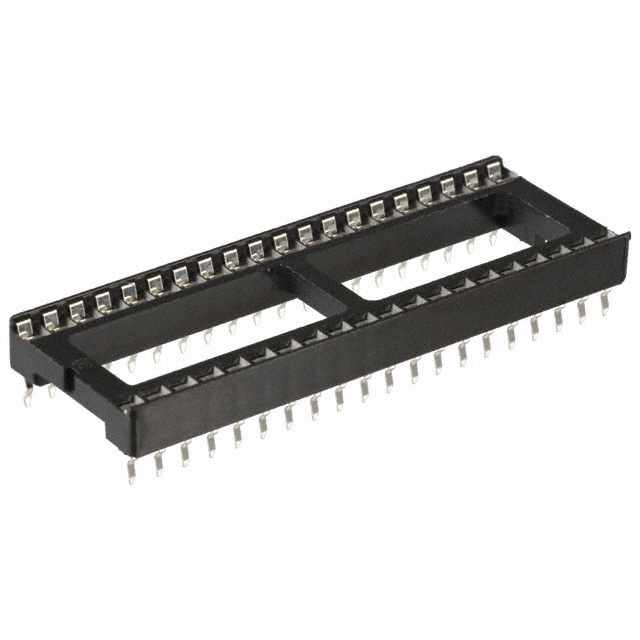

CONN IC DIP SOCKET 40POS TIN
| Part | Contact Material - Mating | Termination | Features | Row Spacing | Type | Contact Finish - Post | Contact Finish - Mating | Operating Temperature (Min) | Operating Temperature (Max) | Pitch - Post | Contact Material - Post | Grid Columns | Number of Positions or Pins (Grid) | Grid Rows | Pitch - Mating | Housing Material | Mounting Type | Termination Post Length | Material Flammability Rating | Current Rating | Contact Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Assmann WSW Components | Phosphor Bronze | Solder | Open Frame | 0.6 in | 0.6" (15.24mm) Row Spacing DIP | Tin | Tin | -55 °C | 85 °C | 0.1 in | Phosphor Bronze | 20 | 40 | 2 | 0.1 in | PBT Polybutylene Terephthalate | Through Hole | 0.124 in | UL94 V-0 | 1 A | 30 mOhm |
