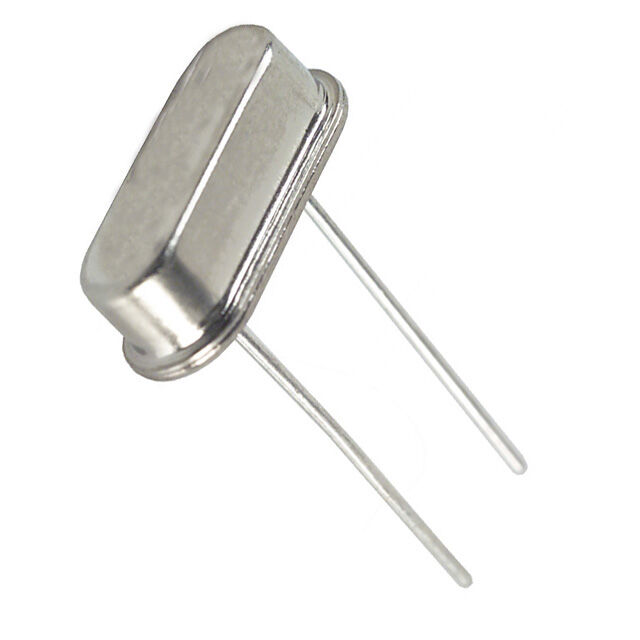

HC-49US Series

Manufacturer: ECS Inc.

Catalog

CRYSTAL 5.0680MHZ SERIES TH

Part	Frequency Stability	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Max]	Operating Temperature [Min]	Frequency Tolerance	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Type	Operating Mode	Frequency	ESR (Equivalent Series Resistance)	Load Capacitance
ECS Inc. ECS-51-S-4	50 ppm	Through Hole	0.138 "	3.5 mm	70 °C	-10 °C	30 ppm	HC-49/US	0.183 "	11.35 mm	0.447 "	4.65 mm	MHz Crystal	Fundamental	5.068 MHz
ECS Inc. ECS-184-S-4	50 ppm	Through Hole	0.138 "	3.5 mm	70 °C	-10 °C	30 ppm	HC-49/US	0.183 "	11.35 mm	0.447 "	4.65 mm	MHz Crystal	Fundamental	18.432 MHz	40 Ohms
ECS Inc. ECS-147.4-20-4	50 ppm	Through Hole	0.138 "	3.5 mm	70 °C	-10 °C	30 ppm	HC-49/US	0.183 "	11.35 mm	0.447 "	4.65 mm	MHz Crystal	Fundamental	14.7456 MHz	40 Ohms	20 pF
ECS Inc. ECS-196.6-20-4	50 ppm	Through Hole	0.138 "	3.5 mm	70 °C	-10 °C	30 ppm	HC-49/US	0.183 "	11.35 mm	0.447 "	4.65 mm	MHz Crystal	Fundamental	19.6608 MHz	40 Ohms	20 pF
ECS Inc. ECS-480-20-4	50 ppm	Through Hole	0.138 "	3.5 mm	70 °C	-10 °C	30 ppm	HC-49/US	0.183 "	11.35 mm	0.447 "	4.65 mm	MHz Crystal	3rd Overtone	48 MHz	100 Ohms	20 pF
ECS Inc. ECS-76.8-20-4	50 ppm	Through Hole	0.138 "	3.5 mm	70 °C	-10 °C	30 ppm	HC-49/US	0.183 "	11.35 mm	0.447 "	4.65 mm	MHz Crystal	Fundamental	7.68 MHz	80 Ohm	20 pF
ECS Inc. ECS-196.6-S-4	50 ppm	Through Hole	0.138 "	3.5 mm	70 °C	-10 °C	30 ppm	HC-49/US	0.183 "	11.35 mm	0.447 "	4.65 mm	MHz Crystal	Fundamental	19.6608 MHz	40 Ohms
ECS Inc. ECS-110.5-20-4	50 ppm	Through Hole	0.138 "	3.5 mm	70 °C	-10 °C	30 ppm	HC-49/US	0.183 "	11.35 mm	0.447 "	4.65 mm	MHz Crystal	Fundamental	11.0592 MHz	60 Ohms	20 pF
