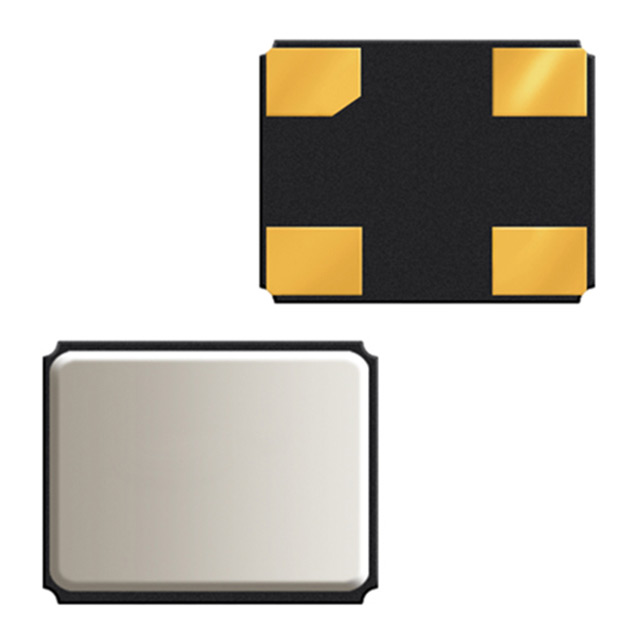

ABM10W Series

Catalog

CRYSTALS XTAL 2520 4-SMD 24.576MHZ TOL +/-10PPM STAB +/-10PPM -20°C ~ 70°C 4PF 80 OHMS

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	ESR (Equivalent Series Resistance)	Frequency	Operating Mode	Mounting Type	Load Capacitance	Frequency Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Type	Frequency Stability	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
Abracon LLC ABM10W-24.5760MHZ-4-B1U-T3	0.6 mm 0.65 mm	0.024 in 0.026 in	80 Ohm	24.576 MHz	Fundamental	Surface Mount	4 pF	10 ppm	-20 ░C	70 °C	4-SMD No Lead	MHz Crystal	10 ppm	2	2.5	4-SMD	2.5 mm	0.079 in	0.098 in	2 mm
Abracon LLC ABM10W-19.2000MHZ-4-D1X-T3	0.65 mm	0.026 in	100 Ohms	19.2 MHz	Fundamental	Surface Mount	4 pF	10 ppm	-40 C	85 °C	4-SMD No Lead	MHz Crystal	20 ppm	2	2.5	4-SMD	2.5 mm	0.079 in	0.098 in	2 mm
Abracon LLC ABM10W-18.4320MHZ-4-D1X-T3	0.6 mm 0.65 mm	0.024 in 0.026 in	100 Ohms	18.432 MHz	Fundamental	Surface Mount	4 pF	10 ppm	-40 C	85 °C	4-SMD No Lead	MHz Crystal	20 ppm	2	2.5	4-SMD	2.5 mm	0.079 in	0.098 in	2 mm
Abracon LLC ABM10W-16.0000MHZ-7-K1Z-T3	0.6 mm 0.65 mm	0.024 in 0.026 in	70 Ohm	16 MHz	Fundamental	Surface Mount	7 pF	10 ppm	-40 C	125 °C	4-SMD No Lead	MHz Crystal	50 ppm	2	2.5	4-SMD	2.5 mm	0.079 in	0.098 in	2 mm
Abracon LLC ABM10W-25.0000MHZ-7-K1Z-T3	0.65 mm	0.026 in	50 Ohms	25 MHz	Fundamental	Surface Mount	7 pF	10 ppm	-40 C	125 °C	4-SMD No Lead	MHz Crystal	50 ppm	2	2.5	4-SMD	2.5 mm	0.079 in	0.098 in	2 mm
Abracon LLC ABM10W-22.5792MHZ-8-D1X-T3	0.6 mm 0.65 mm	0.024 in 0.026 in	50 Ohms	22.5792 MHz	Fundamental	Surface Mount	8 pF	10 ppm	-40 C	85 °C	4-SMD No Lead	MHz Crystal	20 ppm	2	2.5	4-SMD	2.5 mm	0.079 in	0.098 in	2 mm
Abracon LLC ABM10W-24.5760MHZ-7-B1U-T3	0.6 mm 0.65 mm	0.024 in 0.026 in	50 Ohms	24.576 MHz	Fundamental	Surface Mount	7 pF	10 ppm	-20 ░C	70 °C	4-SMD No Lead	MHz Crystal	10 ppm	2	2.5	4-SMD	2.5 mm	0.079 in	0.098 in	2 mm
Abracon LLC ABM10W-26.0000MHZ-7-B1U-T3	0.6 mm 0.65 mm	0.024 in 0.026 in	50 Ohms	26 MHz	Fundamental	Surface Mount	7 pF	10 ppm	-20 ░C	70 °C	4-SMD No Lead	MHz Crystal	10 ppm	2	2.5	4-SMD	2.5 mm	0.079 in	0.098 in	2 mm
Abracon LLC ABM10W-32.0000MHZ-7-B1U-T3	0.65 mm	0.026 in	40 Ohms	32 MHz	Fundamental	Surface Mount	7 pF	10 ppm	-20 ░C	70 °C	4-SMD No Lead	MHz Crystal	10 ppm	2	2.5	4-SMD	2.5 mm	0.079 in	0.098 in	2 mm
Abracon LLC ABM10W-40.0000MHZ-6-D1X-T3	0.65 mm	0.026 in	40 Ohms	40 MHz	Fundamental	Surface Mount	6 pF	10 ppm	-40 C	85 °C	4-SMD No Lead	MHz Crystal	20 ppm	2	2.5	4-SMD	2.5 mm	0.079 in	0.098 in	2 mm
